Installing air conditioning compressor
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preparing for the installation of the air-conditioning compressor

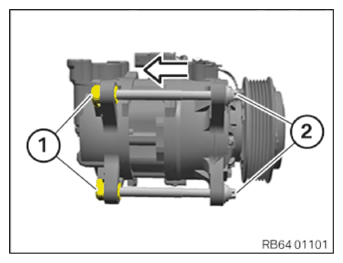

- Screw the screws (2) into the threaded support bushings (1) .
- Push back the threaded support bushings (1) with the help of screws (2) slightly in the arrow direction.
- Unscrew the screws (2) out of the threaded support bushings (1) .

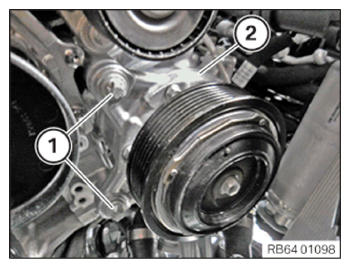

- Insert and install the air conditioning compressor (2) .
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Air conditioning compressor in component carrier | ||
| M10 | Tightening torque | 38 Nm |

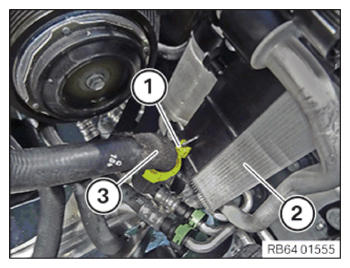

- Position the coolant hose (3) .
- Fasten the hose support (1) at the air conditioning condenser (2) .
- Replace O-rings.
Parts: O-rings

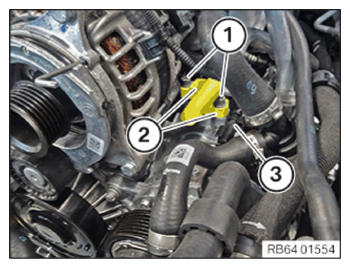

- Connect connectors (3) and lock.
- Fit the refrigerant lines (2) .
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line on air conditioning compressor | ||
| M8 | tightening torque | 19 Nm |
Follow-up work
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to INSTALLING THE CHARGE AIR LINE .
- Refer to INSTALLING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
- Refer to INSTALLING THE CHARGE AIR DUCT FOR 1-3 CYLINDERS .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to EVACUATING AND CHARGING CONDITIONING .
- Refer to RUNNING IN THE NEW AIR CONDITIONING COMPRESSOR .
