Installing coolant pumps
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.

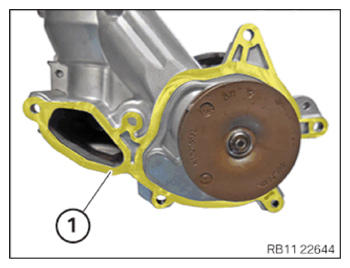

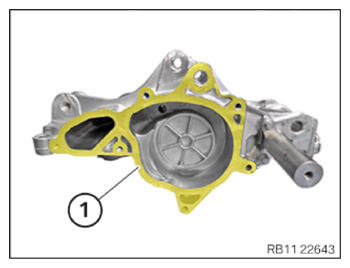

- Clean sealing surfaces (1) with special tool 0 495 102 (11 4 470)
.
- Clean sealing surfaces (1) with special tool 0 495 102 (11 4 470)
.

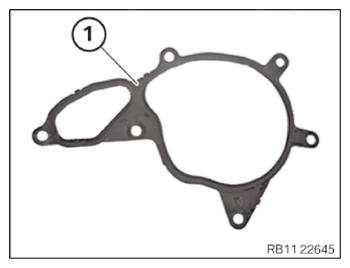

- Replace the seal (1)
.
Parts: Seal

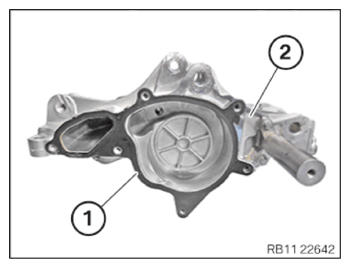

- Guide in and position the seal (1)
on the component carrier (2)
.

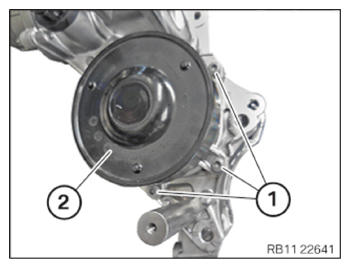

- Guide in and install the coolant pump (2) .

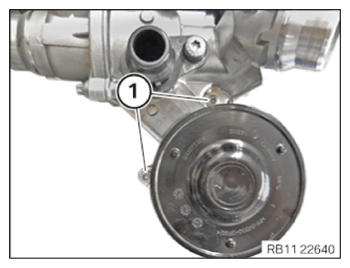

- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Coolant pump to component carrier M6x20 tightening torque 10.5 Nm - Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

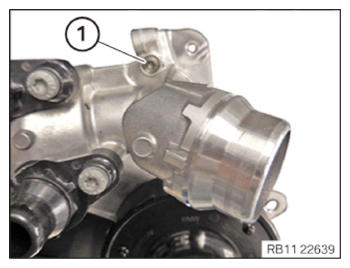

Coolant pump to component carrier M6x20 tightening torque 10.5 Nm - Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Coolant pump to component carrier | ||
|---|---|---|
| M6x20 | tightening torque | 10.5 Nm |
Follow-up work
- Refer to INSTALLING THE COMPONENT CARRIER .
- Refer to INSTALLING AIR CONDITIONING COMPRESSOR .
- Refer to INSTALLING ALTERNATOR .
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to INSTALLING THE CHARGE AIR LINE .
- Refer to INSTALLING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
- Refer to INSTALLING THE CHARGE AIR DUCT FOR 1-3 CYLINDERS .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to EVACUATE AND CHARGE CONDITIONING .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
