Removing front left blend flap motor (M9)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The controller drive must be readdressed after replacement.
Addressing can only be carried out with the diagnosis system.
The controller drive must be readdressed after replacement.
Addressing can only be carried out with the diagnosis system.
Preliminary work
- Refer to ENTERING THE INSTALLATION POSITION OF THE DAMPER MOTOR .
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to REMOVING CUP HOLDER .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT TRIM .
- Refer to REMOVING THE CENTER CONSOLE TRIM .
- Refer to REMOVING THE DECORATIVE TRIM ON THE CENTER CONSOLE ON THE LEFT AND RIGHT .
- Refer to REMOVING THE WIRELESS CHARGING STORAGE .
- Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to REMOVING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE CENTER CONSOLE .
- Refer to REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .
- Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
- Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
- Refer to REMOVING LEFT FOLD-OUT COMPARTMENT .
- Refer to REMOVING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- Refer to REMOVING RIGHT FOOTWELL TRIM .
- Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Refer to REMOVING AIRBAG UNIT (M SPORT STEERING WHEEL) .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to REMOVING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to REMOVING THE GAP COVER .
- Refer to REMOVING THE INSTRUMENT CLUSTER .
- Refer to REMOVING THE INSTRUMENT CLUSTER (KOMBI) .
- Refer to REMOVING THE AUDIO CONTROL UNIT .
- Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to REMOVING THE SPEAKER HOLDER ON THE DASHBOARD .
- Refer to REMOVING THE TRIM PANEL FOR THE DASHBOARD .
NOTE:

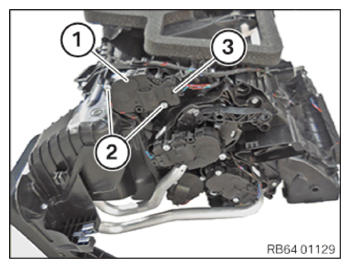

For a better overview the removed condition is shown here.
- Disconnect plug connection (3) .
- Loosen screws (2) .
- Remove the front left blend flap motor (1) .
