Remove the audio control unit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

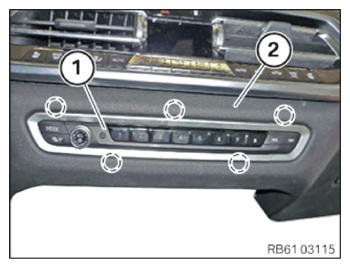

- Unclip the audio control unit (1) with the special tool 0 496 571 (00 9 327)
at the marked points from the dashboard (2).

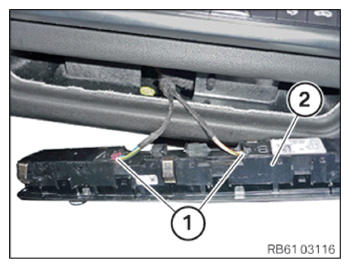

- Disconnect the plug connections (1) and remove the audio control unit (2).
