Install temperature sensor on the crankcase

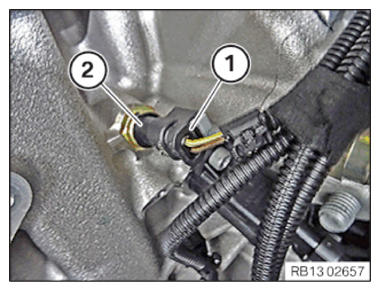

• Feed in and install the temperature sensor (2)  on the crankcase.
• Tighten the temperature sensor (2)  on the crankcase.

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connectors (1)  and lock them.

The connector (1)  must engage audibly.

Follow-up work

• Refer to INSTALLING CHARGE AIR COOLER .
• Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to SECURING THE ENGINE OIL COOLER .
• Refer to INSTALLING FAN COWL .
• Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
• Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
• Refer to INSTALLING THE CONTROL UNIT HOLDER .
• Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
• Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
• Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
