Installing the anti-roll bar

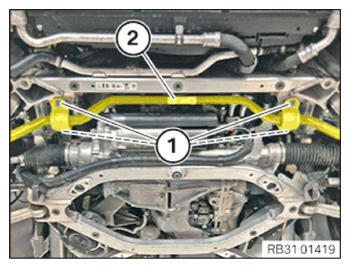

• Feed in the anti-roll bar (2) and position on the front subframe.
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Retaining bracket, anti-roll bar, to front axle support
  M8 Replace screw.	Tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
