Installing the anti-roll bar
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

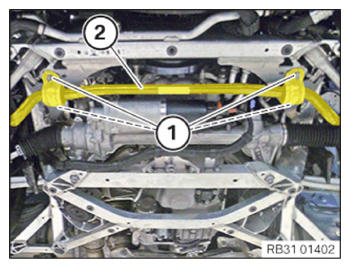

- Feed in the anti-roll bar (2) and position on the front subframe.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Retaining bracket, anti support - roll bar, to front axle support | ||
| M8 Replace screw. | Tightening torque | 28 Nm |
Follow-up work
- Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
