Remove swivel bearing
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly. Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to THE INFORMATION ON THE CARBON CERAMIC BRAKE .
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to RELEASING THE WISHBONE, TENSION STRUT AND TIE ROD END FROM THE SWIVEL BEARING .
- Refer to RELEASING THE FRONT BRAKE CALIPER .
- Refer to RELEASING THE WHEEL SPEED SENSOR FROM THE SWIVEL BEARING .
- Refer to REMOVING FRONT BRAKE DISC .

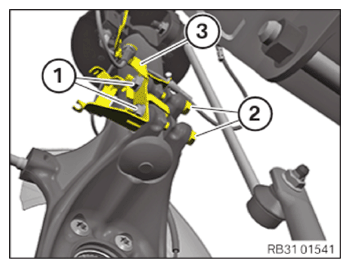

- Counter support at the nuts (1).
- Loosen screws (2).
- Thread out holder (3) and set aside.

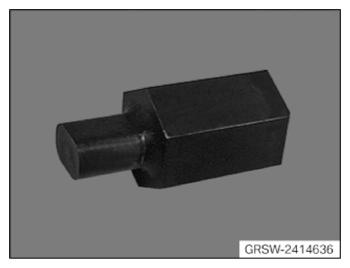

- Keep special tool 0 494 541 (31 2 230) at hand.

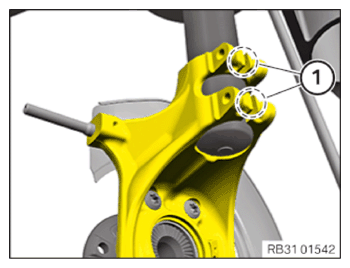

- Spread open the swivel bearing in the marked areas (1) with the special tool 0 494 541 (31 2 230) .

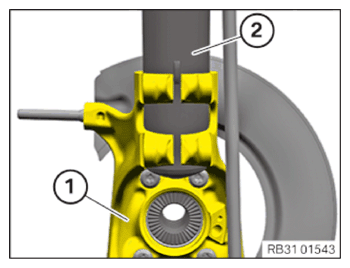

- Release the swivel bearing (1) from the spring strut (2) and remove it.
