Remove front brake disc
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Different variants maybe installed depending on the vehicle equipment.
Different variants maybe installed depending on the vehicle equipment.
NOTE:
RISK OF DAMAGE
Failure to comply with the specification.
Component damage.
Failure to comply with the specification.
Component damage.
- All specifications must be observed and complied with.

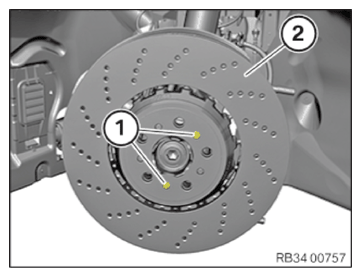

- Loosen screws (1) .
- Remove the brake disk (2)
.

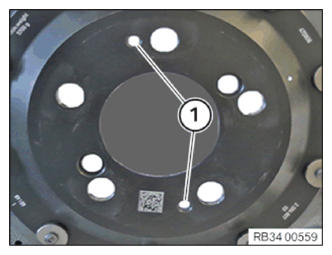

- Variants with carbon ceramic brake:
Screw in two screws (M8) into the internal thread (1) on the brake disc chamber.
Press the carbon-ceramic brake disc of the wheel hub shut.
Screw in screws evenly to avoid distortion of the brake disc chamber during removal.
