Releasing the front brake caliper

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Release the brake hose (1) from the holder (2) .
NOTE: Only perform the operation on the left side.
Release the cable (3) for the brake pad wear sensor from the holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When pressing the brake piston back, note the brake fluid level in the expansion tank.
Overflowing brake fluid will damage the paintwork.

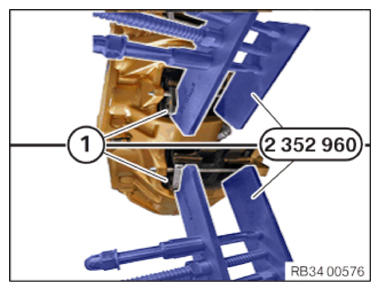

Press the brake piston on the brake pads (1) back with the special tools 2 352 960 .
Push the brake pistons alternately up and down to the stop.

Courtesy of BMW OF NORTH AMERICA, INC.
Release nuts (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

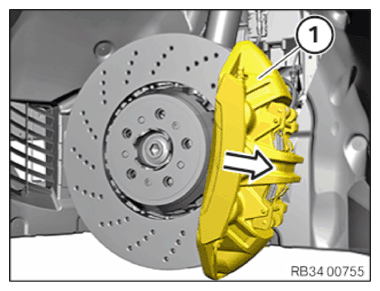

Remove the brake caliper (1) in arrow direction.
Do not hang the brake caliper (1) from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.
Tie up the brake caliper (1) with the special tool 2 413 317 .

Courtesy of BMW OF NORTH AMERICA, INC.
