Install the tension strut

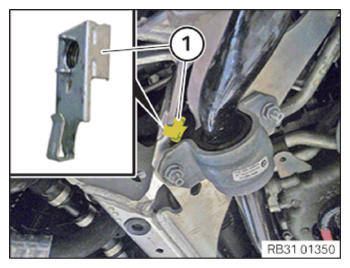

• Replace the cage nut (1).

  Parts:  Cage nut

  Courtesy of BMW OF NORTH AMERICA, INC.

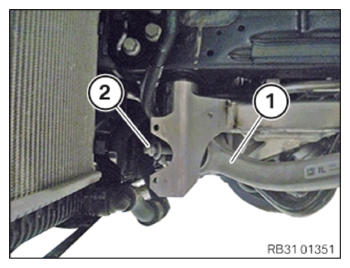

• Position the tension strut (1) on the swivel bearing and the front subframe.
• Replace the screw (2).

  Parts:  Screw

• Screw in screw (2) several turns.

Courtesy of BMW OF NORTH AMERICA, INC.

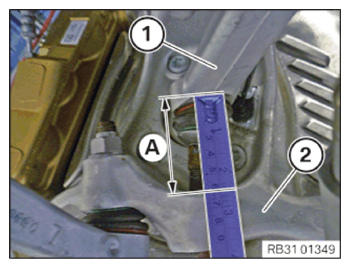

• Adjust tension strut (1) on swivel bearing (2) to dimension (A) (vehicle raised, spring strut extended).

  Dimension (A) = 60 mm

  Installation of the tension strut (1) on the front subframe to the dimension (A) corresponds to the NORMAL POSITION in the compressed state.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Tighten the screw connection in the  NORMAL POSITION  .

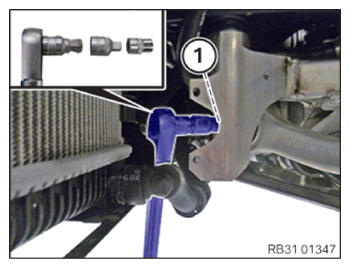

• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Tension strut to front axle support
  M12 Replace bolt and cage nut. Tighten in normal position.	Tightening torque  Angle of rotation	68 Nm 180°

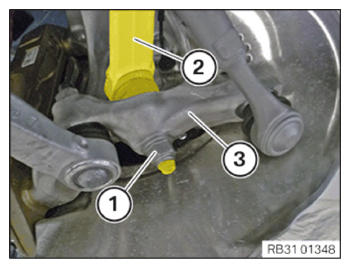

• Position the tension strut (2) on swivel bearing (3).
• Replace nut (1).

  Parts:  Nut

• Tighten nut (1). If necessary, counter support at the Torx socket.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Tension strut to swivel bearing
  M14 Replace nut.	Tightening torque	175 Nm

Follow-up work

• Refer to INSTALLING THE ADAPTER ON THE FRONT SUBFRAME .
• Refer to INSTALLING THE FRONT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
• Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
• Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
