Installing the adapter on the front subframe

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

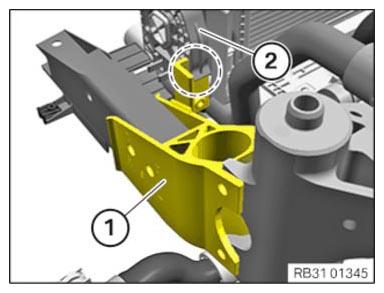

Guide in adapter (1) while installing it on cooler module mount (2).

Courtesy of BMW OF NORTH AMERICA, INC.

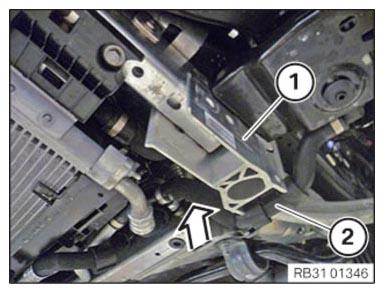

Guide in the adapter (1) on the coolant hose (2) and install it in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) on the cooler module mount.

TIGHTENING TORQUE SPECIFICATIONS

Cooler module mount to adapter of front subframe
M6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

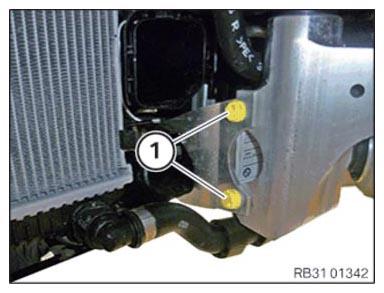

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Frame to adapter of front subframe
M10x60	Tightening torque	40 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

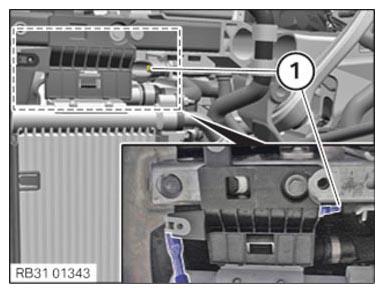

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Adapter, front axle support to front axle support
M8x70	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
