Installing the engine wiring harness for sensor system 1

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

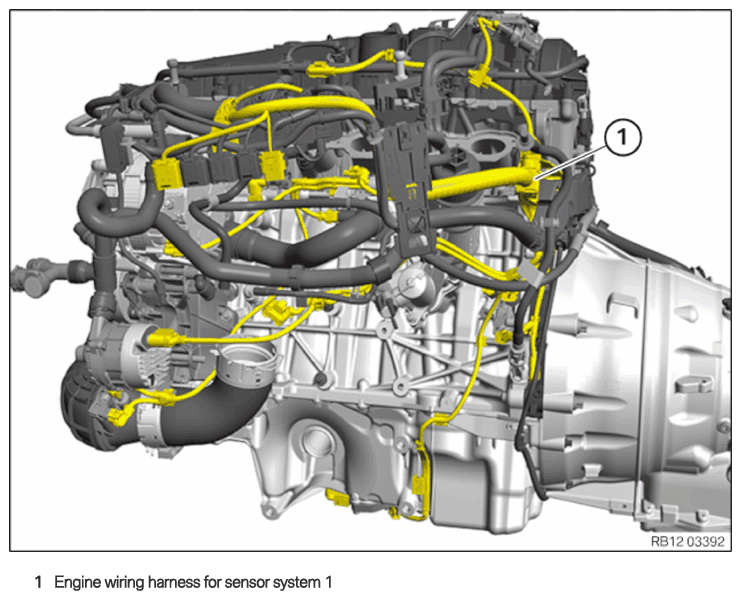

Engine wiring harness for sensor system 1

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

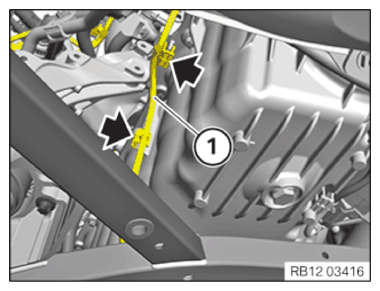

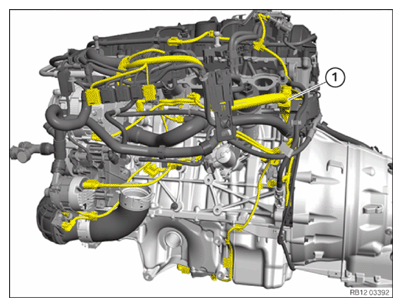

Feed in and install the engine wiring harness (1) for the sensor system 1.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the engine wiring harness (1) for the sensor system 1.
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

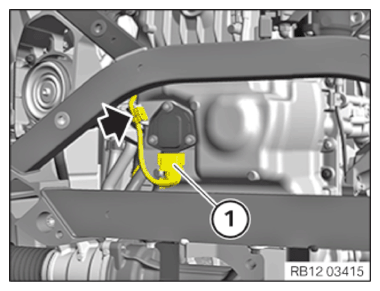

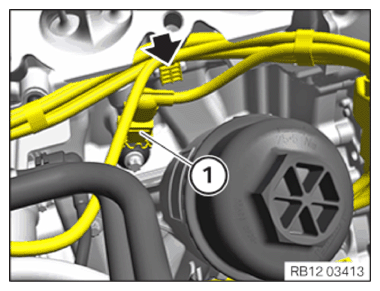

Connect connectors (1) and lock.
The connector (1) must engage audibly.
Secure clamp (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.

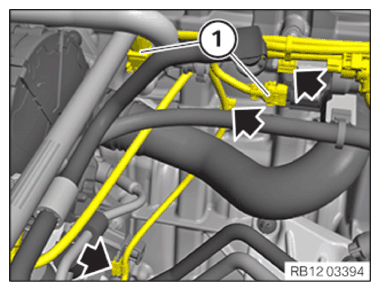

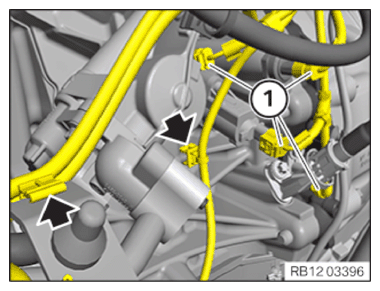

Connect connectors (1) and lock.
The connectors (1) must engage audibly.
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

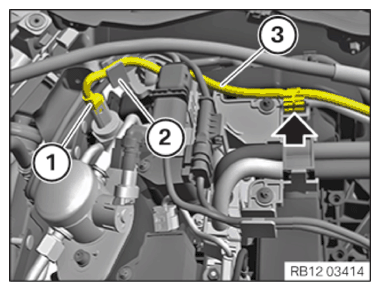

Feed in and install the engine wiring harness (3) for the sensor system 1 in the holder (2) .
Secure clamp (arrow).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

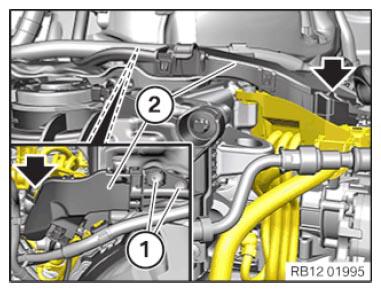

Feed in and install the engine wiring harness (2) for the sensor system 1.
Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

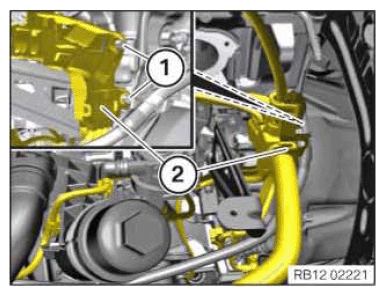

Guide in the wiring harness section (2) and install.
Make sure that the lock (arrow) engages correctly.
Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1) .
The connector (1) must engage audibly.
Secure clamp (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

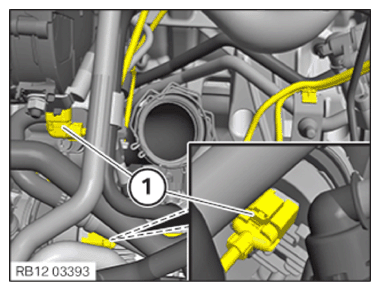

Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

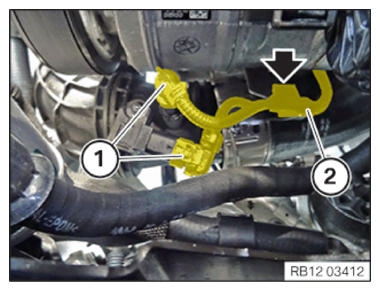

Feed in and install the engine wiring harness (2) for the sensor system 1.
Secure clamp (arrow).
Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the electrical auxiliary coolant pump (2) .
Tighten nut (1) .

TIGHTENING TORQUE SPECIFICATIONS

Electric coolant pump to holder
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING CHARGE AIR COOLER .
Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to SECURING THE ENGINE OIL COOLER .
Refer to INSTALLING FAN COWL .
Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
Refer to INSTALLING THE CONTROL UNIT HOLDER .
Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STRUT BRACE .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to INSTALLING CENTER BULKHEAD LOWER PART .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR HOOD SEAL .
Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
