Removing the side panel on the right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT REP-REP-RAG110-00ANHEB - V.24 (M5 2018-2022 M5 COMPETITION 2019-2022, M5 CS 2022) .

Preliminary work

Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVE THE LID FOR THE WASHER FLUID RESERVOIR .
Refer to REMOVING THE MOUNT OF THE HOOD SEAL .
Refer to REMOVING THE WHEEL .
Refer to REMOVE THE FRONT RIGHT WHEEL ARCH COVER FRONT SECTION .
Refer to REMOVE REAR SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
Refer to PARTIALLY RELEASING THE FRONT RIGHT BUMPER COVER ON THE SIDE PANEL .
Refer to REMOVING THE TRIM FROM THE RIGHT FRONT SIDE PANEL .
Refer to REMOVING THE AIR DUCT ON THE RIGHT SIDE PANEL .
Refer to REMOVE WASHER FLUID RESERVOIR .

Mask area (1) on the headlight with a plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.
Mask the area (1) of the door with plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the sound insulation (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the sound insulation (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (arrow) (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release screws (1) at the door sill trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (arrow) (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (arrows) (1)

Courtesy of BMW OF NORTH AMERICA, INC.
Open the front door.
Pull the sealing (1) down slightly in the direction of the arrow.
Loosen screw (arrow) (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.

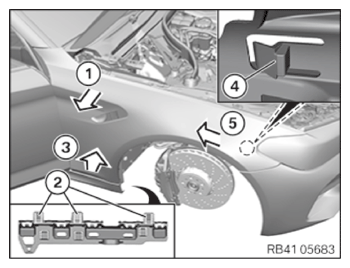

Pull side panel in upper area of A-pillar (1) outwards in direction of arrow.
Release detents (2) on the holder of the door sill trim panel.
Loosen bottom side panel in area of door sill trim panel (3) upwards in direction of arrow.
Pull side panel on latch mechanism (4) on headlight (5) towards rear in direction of arrow and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
