Remove the front right wheel arch cover front section
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

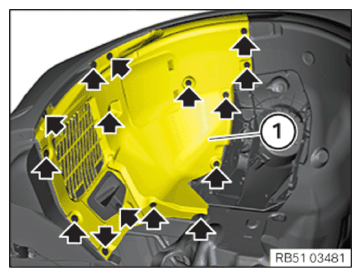

Remove the front section of the front wheel arch cover
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
- Remove screws (arrows).
- Guide out the front section (1) of the front wheel arch cover.
