Removing the trim from the right front side panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

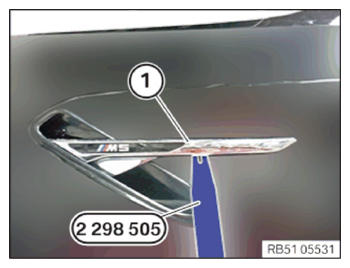

- Use the special tool 2 298 505
to loosen the trim (1)
at the detent at the top as shown.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

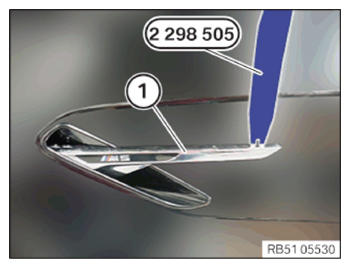

- Use the special tool 2 298 505
to loosen and remove the trim (1)
at the detent at the bottom as shown.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
