Replacing the tail light seal on the left side panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to PARTIALLY REMOVING THE LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to REMOVING THE TAIL LIGHT ON THE SIDE PANEL .

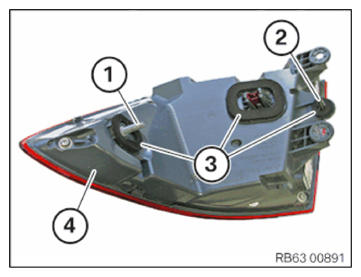

- Remove the gaskets (3) .
- Clean bonding surfaces.
- Bond new gaskets.
Follow-up work
- Refer to INSTALLING THE TAIL LIGHT ON THE SIDE PANEL .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
