Install the tail light on the side panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Check the threaded bolt (1) and the guide (2) on the tail light (4) for damage and replace if necessary.
Replace seals (3).
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

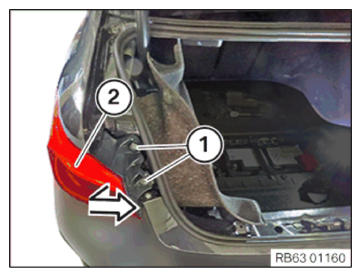

Position the tail light (2).
Replace nuts (1).
Parts: Nut
Tighten the nuts (1) on the tail light (2).

TIGHTENING TORQUES SPECIFICATION

Tail light to side panel
Nut M6 Replace nuts.	Tightening Torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.
Replace nut (2).
Parts: Nut
Tighten nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Tail light to side panel
Nut M6 Replace nuts.	Tightening Torque	2.6 Nm

Check the clips (1) and the guides (2) on the water drain (3) for damage, replacing them if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the water drain (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the adhesive tape in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
