Partially remove the left luggage compartment wheel arch trim panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

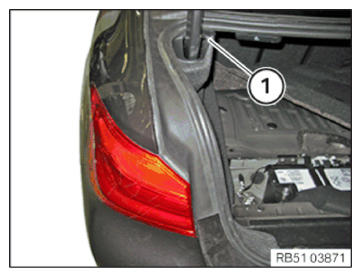

- Remove the cover (1) towards the top.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

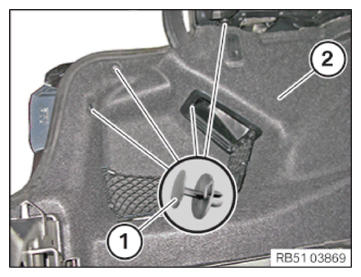

- Remove the expanding rivet (1) on the luggage compartment wheel arch trim panel (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

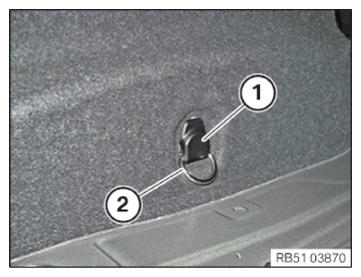

- Lever the cover (1) out and unscrew the bolt below it.
- Remove the lashing point (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

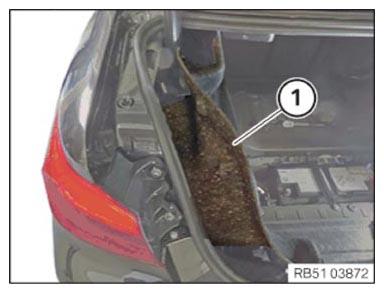

- Partially remove the luggage compartment wheel arch trim panel (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
