Installing the control arm

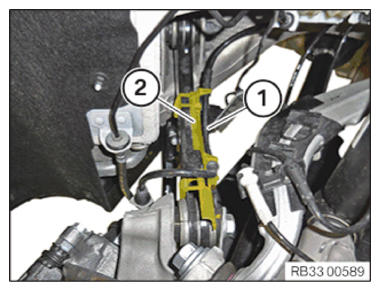

• Position the control arm (2)  .
• Replace the screw (1)  .

  Parts:  Screw

• Screw in the screw (1)  but do not yet tighten.

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screw (1)  and nut (2)  .

  Parts:  Bolt, nut

• Insert the screw (1)  .

• Unscrew the nut (2)  but do not yet tighten.

Courtesy of BMW OF NORTH AMERICA, INC.

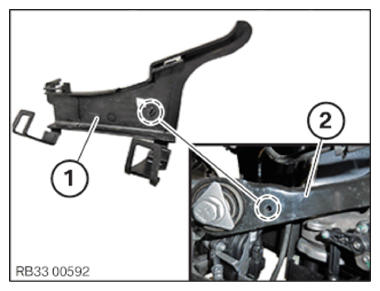

• While installing the cable bracket (1)  , make sure that the pin on the cable bracket (1)  fits in the hole of the control link (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the cable clip (2)  .

• Secure the cable (1)  to the cable clip (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COMPLETE REAR AXLE SUPPORT .
• Refer to SECURING REAR AXLE .
• Refer to TIGHTENING THE THREADED CONNECTION TO THE CONTROL ARM IN THE NORMAL POSITION .
• Refer to SECURING THE WIRING HARNESS FOR THE REAR AXLE DIFFERENTIAL .
• Refer to SECURING CABLES ON RIGHT AND LEFT .
• Refer to CONNECTING THE CONNECTOR TO THE REAR RIDE HEIGHT SENSOR .
• Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
• Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
• Refer to INSTALLING THE REINFORCEMENT STRUT .
• Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
• Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
• Refer to INSTALLING THE REAR DIFFUSER .
• Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
• Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
