Tightening the threaded connection to the control arm in the normal position
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Failure to comply with the specification.
Component damage.
Failure to comply with the specification.
Component damage.
- All specifications must be observed and complied with.
- Loosen screw (1) .
- Release the spring strut from the wheel carrier.
- Before lifting the wheel carrier, spring strut shock absorber (1) must
be positioned behind camber control arm (2)
in the arrow direction.
- Cover camber control arm (1) with a cloth (2) .
- While lifting the wheel carrier, ensure that there is sufficient distance from the spring strut shock absorber (3)
.
- Position the special tool 2 358 630 with lug bolts on the brake disk.
- Apply the lug bolts until hand-tight.
- Insert the universal jack into the special tool 2 358 630
.
- Lift the wheel carrier with the universal jack until the dimension (A)
is reached.
Dimension (A) must not be undershot.

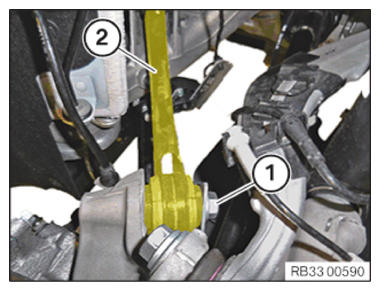

TECHNICAL DATA SPECIFICATIONRide height of rear axle F90, standard suspension, European version Measured from center of wheel hub to lower edge of wheel well Dimension A 364 mm TECHNICAL DATA SPECIFICATIONRide height of rear axle F90, standard suspension, Chinese/Japanese version Measured from center of wheel hub to lower edge of wheel well Dimension A 365 mm TECHNICAL DATA SPECIFICATIONRide height of rear axle F90, standard suspension, American version Measured from center of wheel hub to lower edge of wheel well Dimension A 370 mm TECHNICAL DATA SPECIFICATIONRide height of rear axle F90, racing suspension, European/Chinese/Japanese version Measured from center of wheel hub to lower edge of wheel well Dimension A 358 mm TECHNICAL DATA SPECIFICATIONRide height of rear axle F90, racing suspension, American version Measured from center of wheel hub to lower edge of wheel well Dimension A 364 mm - Tighten screw (1)
on control arm (2)
in the NORMAL POSITION
.TIGHTENING TORQUES SPECIFICATION
Control arm to wheel carrier M16
Replace screw.
Tighten in normal position.Joining torque 165 Nm Angle of rotation 90° - Tighten nut (2)
in the NORMAL POSITION
.
Counter-support screw (2) .
TIGHTENING TORQUES SPECIFICATIONControl arm to rear axle support M14
Replace screw and nut.
Tighten in normal position.Joining torque 165 Nm Angle of rotation 90° - Release the universal jack and set it aside.
- Release the lug bolts and remove the special tool 2 358 630
.

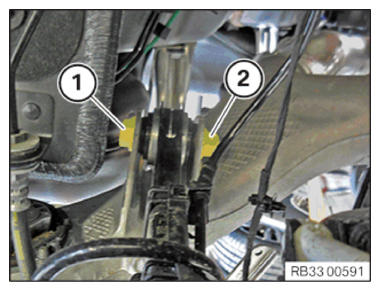

- Align spring strut (1)
parallel to wheel carrier (2)
and guide it into the wheel carrier.NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION . - Position the spring strut shock absorber on the wheel carrier.
- Replace the screw (1)
.
Parts: Screw
- Tighten screw (1) in the NORMAL POSITION .
TIGHTENING TORQUES SPECIFICATION
| Rear spring strut to wheel carrier | ||
| M14 Replace screw. Tighten in normal position. |
tightening torque | 175 Nm |
