Replacing the strut

• Check the auxiliary damper (1) and spring pad (2) and replace them if necessary.
• Slide the auxiliary damper (1) and the spring pad (2) onto the suspension strut (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

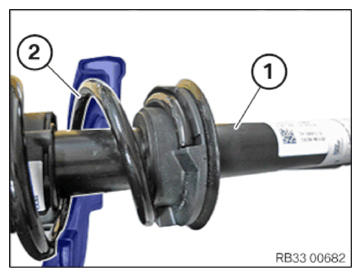

• Insert the suspension strut (1) with the spring pad and the auxiliary damper into the tensioned coil spring (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the spring pad (1) and replace as needed.

  Parts:  Spring pad

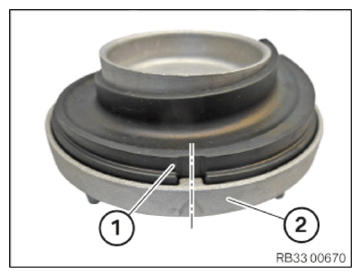

• Position the spring pad (1) based on the recess to the spring strut support bearing (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

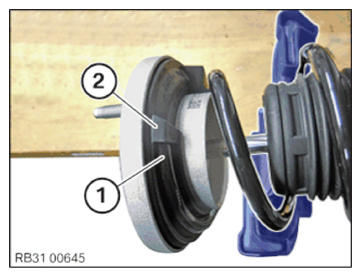

• Align the coil spring end (1) at the spring pad (2) to the stop.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Push the strut mount with the spring pad (2) onto the piston rod of the suspension strut shock absorber.
• Align the coil spring end (1) at the spring pad (2) to the stop.

  Courtesy of BMW OF NORTH AMERICA, INC.

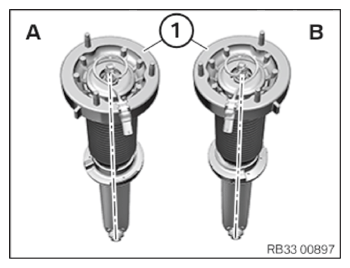

• Align the support bearing (1) with the suspension strut as shown in the illustration.
  • A = left spring strut
  • B = right spring strut

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Releasing and tightening the nut on the support bearing or spring strut support bearing with an impact screwdriver is prohibited.
• Replace nut.

  Parts:  Nut

• Tighten the nut with special tool 2 360 213  , the reversible ratchet with extension, the nut SW10 and torque wrench with ring wrench insert SW21.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Spring strut support bearing to spring strut
  M14 Replace nut.	tightening torque	47 Nm

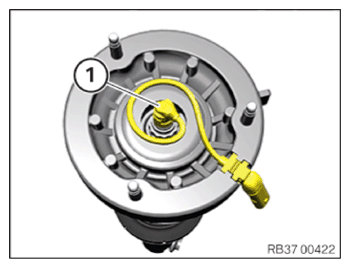

• Install the cable and insert the connector (1) on the spring strut.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR SPRING STRUT .
• Refer to POSITIONING SOUNDPROOF MAT .
• Refer to INSTALLING REAR UPPER SEAT BELT .
• Refer to INSTALLING THE TRIM PANEL FOR THE REAR SHELF .
• Refer to INSTALLING REAR SEAT BACKREST (NOT FOR SA465 PASS-THROUGH SYSTEM) .
• Refer to INSTALLING THE REAR SEAT BENCH .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING BOTH C-PILLAR TRIM PANELS .
• Refer to REMOVING THE REAR WHEEL ARCH COVER .
• Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
• Refer to CONNECTING BATTERY GROUND LEAD .
