Installing rear spring strut
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

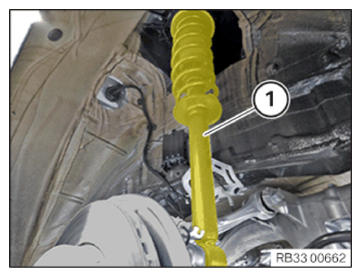

- Position the spring strut (1) in the wheel arch.
- Position the spring strut on the strut-tower.

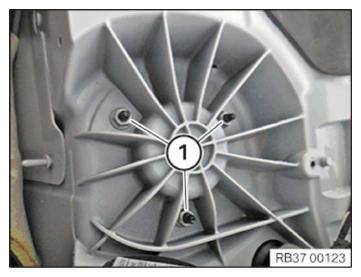

- Replace nuts (1).
Parts: Nuts
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATIONS
Rear spring strut to body M8

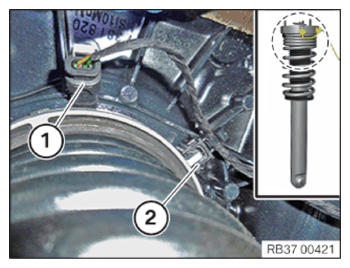

Replace nut.tightening torque 28 Nm - Insert and lock plug (1) on the support bearing.
- Secure the cable clips (2).NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the normal position.

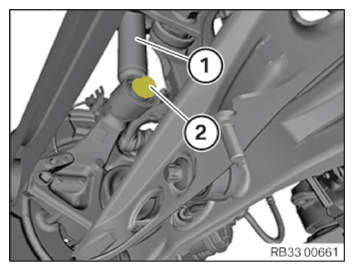

For additional information see: 33 00 TECHNICAL DATA OVERVIEW . - Position the spring strut (1) on the wheel carrier.
- Replace the screw (2).
Parts: Screw
- Tighten screw (2) in the normal position.
TIGHTENING TORQUE SPECIFICATIONS
| Rear spring strut to wheel carrier | ||
| M14 Replace screw. Tighten in normal position. |
tightening torque | 175 Nm |
Follow-up work
- Refer to POSITIONING SOUNDPROOFING MAT .
- Refer to INSTALLING REAR UPPER SEAT BELT .
- Refer to INSTALLING THE TRIM PANEL FOR THE REAR SHELF .
- Refer to INSTALLING REAR SEAT BACKREST (NOT FOR SA465 PASS-THROUGH SYSTEM) .
- Refer to INSTALLING THE REAR SEAT BENCH .
- Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to INSTALLING BOTH C-PILLAR TRIM PANELS .
- Refer to REMOVING THE REAR WHEEL ARCH COVER .
- Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
- Refer to CONNECTING BATTERY GROUND LEAD .
