Installing rear seat backrest (not for SA465 pass-through system)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Remove rear seat backrest

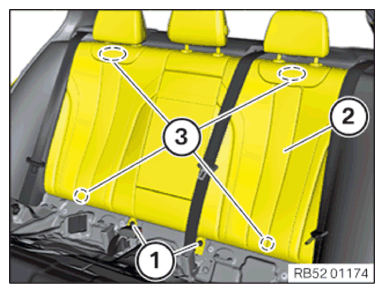

- Insert the rear seat backrest (2) and place the seat belt around the rear seat backrest (2) .
- Hook the rear seat backrest (2) into the guides (3) from above.
- Replace screws (1)
.
Parts: Screws
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Rear seat backrest on body | ||
| Screw Replace screw. |
Tightening torque | 42 Nm |
