Remove the backrest frame for the front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to CHECKING THE FRONT SEAT FOR DAMAGE .
- Refer to REMOVING FRONT SEAT .
- Refer to REMOVING THE REAR PANEL OF THE FRONT SEAT BACKREST .
- Refer to REMOVING OUTER COVER ON FRONT SEAT .
- Refer to REMOVING INNER COVER ON FRONT SEAT .
- Refer to REMOVING LUMBAR SUPPORT ON FRONT SEAT .
- Refer to INSTALLING HEAD RESTRAINT ON FRONT SEAT .
- Refer to REMOVING BOTH GUIDE SLEEVES FOR THE FRONT HEAD RESTRAINT .
- Refer to REMOVING THE DRIVE FOR THE HEADREST HEIGHT ADJUSTMENT ON THE FRONT SEAT .
- Removing side airbag from front seat.WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .

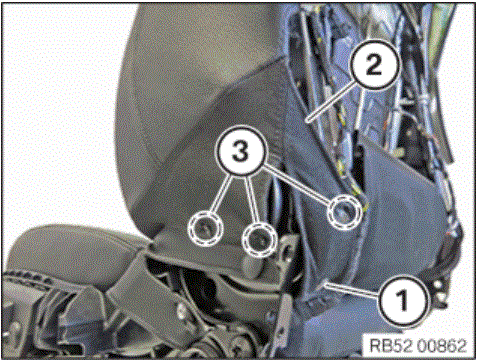

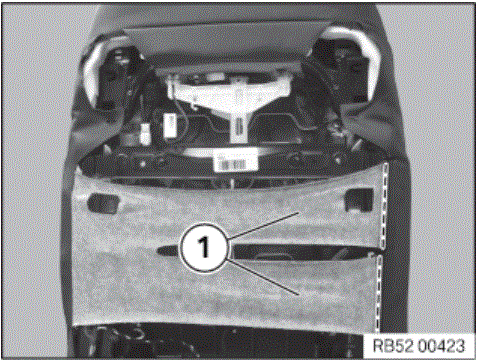

- Detach the backrest cover (1) in signaled area.
- Loosen clip (1).
- Detach the backrest cover (2) in this area (3).

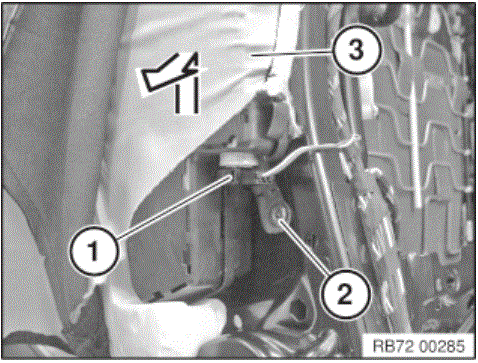

- Unlock plug connection (1) and disconnect.
- Cover the area around the rivet head (2).
- Drill out the rivet head (2).
- Remove the airbag module from the backrest frame and lining pocket (3) in the direction of the arrow.
- Fully remove rivet remnants.
- Refer to REMOVING THE BACKREST COVER WITH THE UPHOLSTERY FOR THE FRONT SEAT .

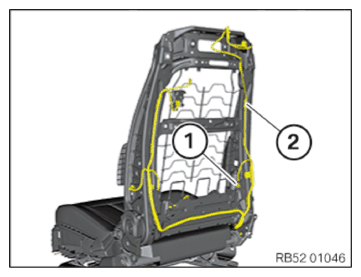

- Unlock plug connection (1) and disconnect.
- Detach wiring harness (2) from all cable clips and remove.

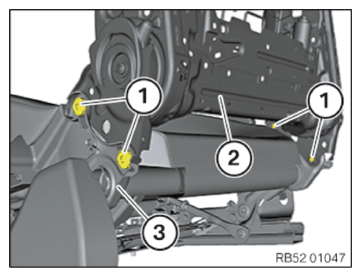

- Loosen screws (1).
- Remove the backrest frame (2) from the seat mechanism (3).
