Install head restraint on front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

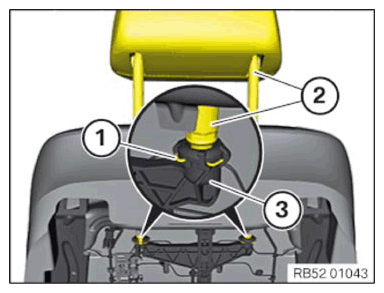

- Slightly spread the clamps (1)
and pull the head restraint (2)
from the drive (3)
.
Replace the drive for the headrest height adjustment (3) as soon as the head restraint is removed.
- Remove the head restraint (2)
upwards out of the backrest.
- Detach the cover of the backrest (1)
in the area (2)
and fold up.

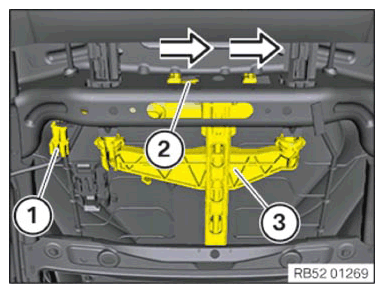

- Disconnect plug connection (1) .
- Unlock the retaining lug (2) and shift the drive (3) in the direction of the arrow.
- Feed out the drive for the headrest height adjustment (3) downwards.
