Removing delivery unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
NOTE:
TECHNICAL INFORMATION
COLLECT AND DISPOSE OF EMERGING FLUIDS. OBSERVE COUNTRY-SPECIFIC WASTE DISPOSAL REGULATIONS.
COLLECT AND DISPOSE OF EMERGING FLUIDS. OBSERVE COUNTRY-SPECIFIC WASTE DISPOSAL REGULATIONS.
Preliminary work
- Refer to SUCTIONING THE FUEL TANK .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to OPENING THE LOCKING RING .
- Lift flange lid (1) in arrow direction.

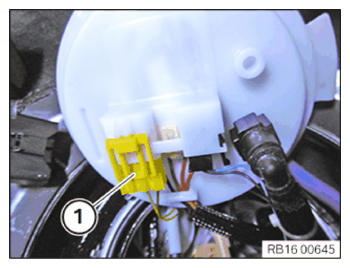

- Disconnect plug connection (1).
If installed: Remove cable tie

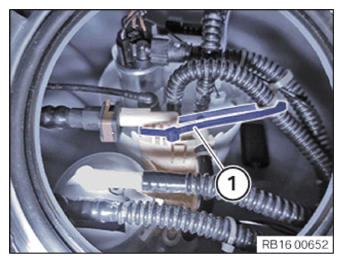

- Remove cable tie (1).
- Press snap fastener in direction of delivery unit.

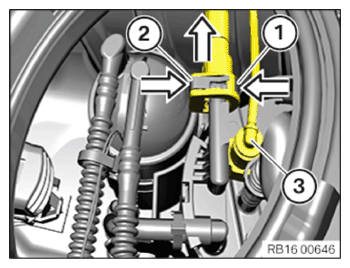

- Press snap-in lugs (1) and (2) and pull snap fastener up and off.
- Unlock and detach snap fastener (3).

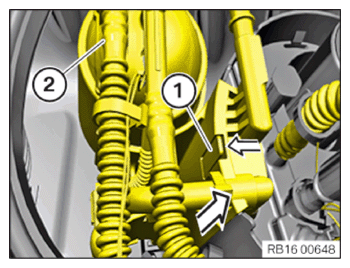

- Unlock the detent (1) in the direction of the arrow.
- Detach holder for the fuel filter (2) upwards.
- Place fuel filter with holder (2) to the side so that the locking mechanism for the delivery unit is accessible.

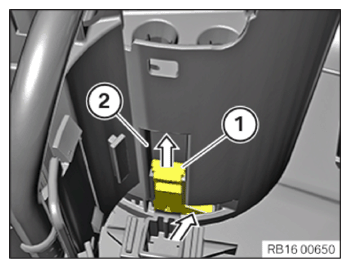

- Unlock lock (1) arrow direction from the top.
- Slightly push delivery unit (2) in arrow direction and feed out to the top.
- Remove fuel filter with the bracket from the fuel tank.
- Remove the delivery unit from the fuel tank.
To remove the delivery unit the fuel filter must be removed.
