Suction the fuel tank
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Contact with hazardous fluids.
Hazardous to health!
Hazardous to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
- Open gas cap.

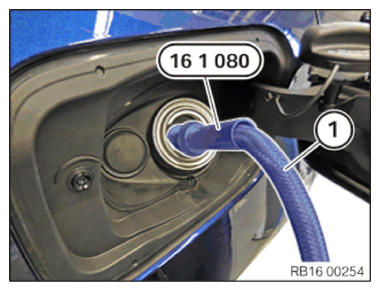

- Insert special tool 0 495 588 (16 1 080)
into fuel filler neck.
Special tool 0 495 588 (16 1 080) has two different diameters: for gasoline/diesel fuels.
- Slide suction hose (1)
of the extractor unit through special tool 0 495 588 (16 1 080)
and into the fuel filler neck. If necessary, slightly turn the suction hose.
For the extractor unit: refer to applicable BMW Workshop Equipment catalogue.
The insertion length of the suction hose is 125 cm.
- Start engine and allow to run, so that the electric fuel pump is running.
This will ensure that the fuel is pumped by the ejector pump from the left-hand side of the fuel tank to the right hand-side.
- Draw off fuel with the extractor unit as far as possible. In the process, track the suction of the fuel on the fuel gauge in the instrument cluster.
