Installing the electrical steering column
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

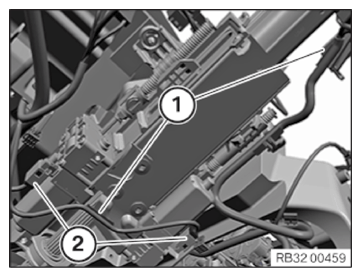

To provide a better overview: Schematic diagram with partially hidden components.
- Carefully feed in the steering column from the top.
- Connect connectors (2) and lock.
NOTE:
To reach the plug connections, shift the steering column downwards in the driving direction.
- Secure the cable (1) on the steering column.

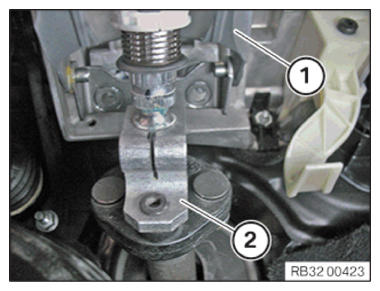

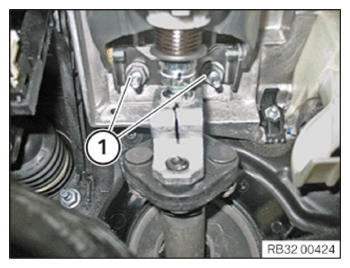

- Observe the mark made during removal for positioning the lower steering shaft (1) on the steering column (2).
Non-compliance will lead to inclination of the steering wheel.

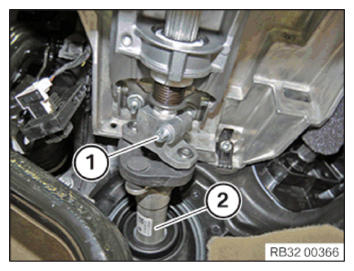

- Slide the steering column (1) into the lower steering shaft (2) approx. 10 mm.
- Position the steering column on the support of the instrument panel.
- Fit the nuts (1).
NOTE:
Do not yet tighten nuts.

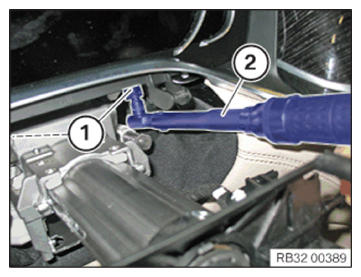

- Fit the nuts (1).
NOTE:
The tightening with the torque wrench (2) is carried out in the sequence specified in the next work step.
- Nuts must be tightened in the sequence (1) to (4).
TIGHTENING TORQUE SPECIFICATIONS
| Steering column to dashboard support | ||
| M8 Observe tightening sequence. | Tightening torque | 21.4 Nm |

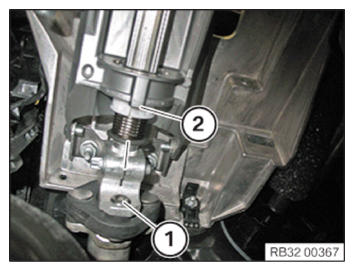

- Slide the lower steering shaft (2) fully off of the steering column.
- Replace the clamping bolt (1).
Parts: Clamping bolt
- Tighten the clamping bolt (1).
TIGHTENING TORQUE SPECIFICATIONS
| Lower steering shaft to steering column | ||
| Clamping bolt M8 Recut screw thread. Replace clamping bolt. No retorque permitted! |
tightening torque | 28 Nm |
Follow-up work
- Refer to INSTALLING KNEE AIRBAG .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING STEERING WHEEL .
- Refer to INSTALLING AIRBAG UNIT .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to PERFORMING STEERING COLUMN ADJUSTMENT STANDARDIZATION .
- Refer to CHECKING THE STRAIGHT-AHEAD DRIVING POSITION OF THE STEERING WHEEL .
- Refer to CHECKING THE AIRBAG FOR FUNCTION .
