Installing the steering gear bellows

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Grease the electromechanical steering gear and the tie rod in areas (1) and (2).

Consumable

Lubricating grease FB-1

100 g, Tube

83 23 2 208 093

Courtesy of BMW OF NORTH AMERICA, INC.

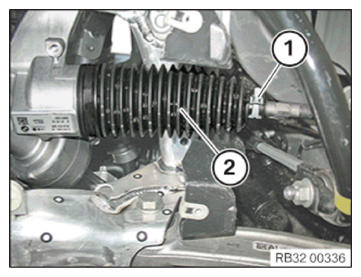

Push on the bellows (2).
Attach the strap clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace ear hose clamp.
Parts: Ear hose clamp

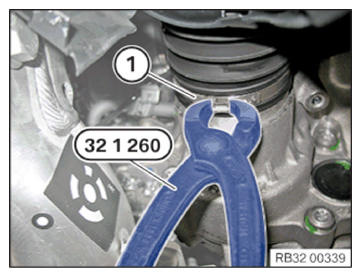

Hook the hook fastener and the ear hose clamp (1) press together with the special tool 0 494 152 (32 1 260) .

Courtesy of BMW OF NORTH AMERICA, INC.

Technical data Ear hose clamp gap dimension Courtesy of BMW OF NORTH AMERICA, INC.	Dimension [A]	max. 1 mm

Follow-up work

Refer to INSTALLING TIE ROD END .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to MOUNTING THE WHEEL .
Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
