Install injectors
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
Preparing the injectors for installation
NOTE:
RISK OF DAMAGE
Damage to the injector tips and Teflon ring.
Improper handling of the injector tips and Teflon ring can lead to malfunctioning of the injector.
Damage to the injector tips and Teflon ring.
Improper handling of the injector tips and Teflon ring can lead to malfunctioning of the injector.
- Avoid mechanical contact with injector tip.
- When exchanging Teflon ring, hands and work surface must be clean and free of oil. Do not use any lubricating agents.
- Do not use fingernails to slide Teflon ring on.
NOTE:
TECHNICAL INFORMATION
Before re-exchangeing the injector, the Teflon ring must be replaced. Once a Teflon ring has been installed, it may not be re-used. New injectors are supplied with a new Teflon ring.
After installation of a new Teflon ring on the injectors, the injector must be installed in the cylinder head within 10 minutes or protected with protective caps; otherwise, the Teflon ring will swell.
Before re-exchangeing the injector, the Teflon ring must be replaced. Once a Teflon ring has been installed, it may not be re-used. New injectors are supplied with a new Teflon ring.
After installation of a new Teflon ring on the injectors, the injector must be installed in the cylinder head within 10 minutes or protected with protective caps; otherwise, the Teflon ring will swell.
- Before installing the injectors: Replace the Teflon rings (1).
Parts: Teflon rings
- Avoid mechanical contact with injector tip (2).
- Remove Teflon ring (1) by using special tool 2 452 959 from injector (2).
- If necessary, use a lint-free cloth to clean the cylindrical part of the injector tip. Do not use ultrasonic sound or other auxiliary materials.
- Do not
clean injector tip.
- For installing the new Teflon ring: Use 2 448 401
set of special tools:
- Installation cone
- Sliding sleeve
- Assembly sleeve
- Slide the new Teflon ring (1) onto the installation cone (2) from the set of special tools 2 448 401
.
- Ensure correct installation position of the assembly sleeve (1) from the set of special tools 2 448 401:
The larger diameter of the assembly sleeve (1) must point to the injector tip.
- Ensure correct installation position of the assembly sleeve (1) from the set of special tools 2 448 401:
The assembly sleeve (1) is not mounted correctly if the smaller diameter points to the injector tip.
- Mount the Teflon ring (2) with the installation cone (1) from the set of special tools 2 448 401
on the injector tip.
- Slide the Teflon ring (2) by using the sliding sleeve (1) from the set of special tools 2 448 401
in arrow direction into the groove (3) on the injector.
- Feed out and remove the sliding sleeve (1) from the set of special tools 2 448 401 in arrow direction.
- Feed out and remove the installation cone (1) from the set of special tools 2 448 401
in arrow direction.
- Make sure that the widened Teflon ring (1) is placed clean in the groove (2) of the injector (3) and can be easily moved with fingers.
- Calibrate the widened Teflon ring with the assembly sleeve (1) from the set of special tools 2 448 401 in arrow direction to the installation dimension.
- Make rotational movements
in increments of 180° synchronous to the detaching movement.
While doing so, move slowly and not jerkily.
This calibrates Teflon ring (1) to the installation dimension.
- Guide out and remove assembly sleeve (1).
- Check if the installation dimension of the Teflon ring (1) is correct:
- Shows that the Teflon ring has the correct installation dimension.
- Shows that the Teflon ring does not have the correct installation dimension.
- Mount injectors (1) on special tool (2)2 410 777 .
- Align the plug connections of injectors (1) in the correct installation position.
- Insert the injectors into the injector bore holes using special tool (1) 2 410 777 .
- Screw screws (2) and (3) into the injector shaft by a few thread starts.
- Check if pull-out thread (4) and threaded sleeves (5) are mounted correctly.
- Tighten screws (2) and (3).
TIGHTENING TORQUES SPECIFICATION
| Special tool 2 410 777 to injector well | ||
| M6 | tightening torque | 8 Nm |
- Insert injectors in injector bores.
- Fit the special tool (1) 2 410 777 on the injector shaft.
- Screw in the screws (2) in the injector shaft by a few threads.
- Screw in the extraction thread (4) until the threaded sleeves (3) can be screwed onto the injectors.
- Screw on and tighten the threaded sleeves (3) onto the injectors.
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Special tool 2 410 777 to injector well | ||
| M6 | tightening torque | 8 Nm |
- Adjust the torque wrench (1) to 2 Nm, anti-clockwise.
- Position the torque wrench (1) and special tool (2) 0 496 106 (11 8 720) on the hexagon head of special tool 2 410 777 .
- Turn the torque wrench (1) in anti-clockwise direction until 2 Nm apply.
- Install hold-down device (1) with curvatures (see arrow) downwards.
- Install the hold-down device (2) on the injectors.
- Screw in the screw (1) by a few turns only.
Follow-up work

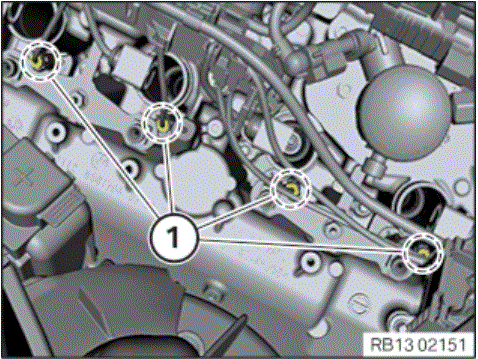

- Attaching connector of the injectors of cylinder bank 1.NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
Connect and lock all connectors (1) of the injectors of cylinder bank 1.
- Refer to INSTALLING RAIL OF CYLINDER BANK 1 .
- Refer to INSTALLING IGNITION COILS OF CYLINDER BANK 1 .
- Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to PERFORMING INJECTION QUANTITY COMPENSATION .
