Install the tension strut
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

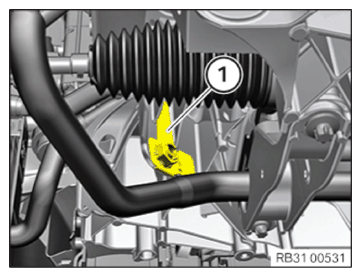

- Replace clip nut (1).
Parts: Clip nut
- Position the tension strut (1) on the front subframe.
- Position tension strut on swivel bearing.
- Replace nut (1).
Parts: Nut
- Tighten nut (1).
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Tension strut to swivel bearing | ||
| M16 Replace nut. | Joining torque Angle of rotation |
100 Nm 90° |
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .
- Replace the screw (1) with the crash lever (2).
Parts: Crash lever
- Position the crash lever (2) with the screw (1).
- Tighten the screw (1) in NORMAL POSITION .
TIGHTENING TORQUE SPECIFICATIONS
| Tension strut to front axle support | ||
| M14 Replace flat nuts and screw. Tighten in normal position. |
Joining torque Angle of rotation |
85 Nm 180° |
Follow-up work
- Refer to MOUNTING THE EXTERNAL RADIATOR .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to INSTALLING THE BRAKE VENTILATION DUCT .
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to INSTALLING THE FRONT BOTTOM WHEEL ARCH COVER .
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
