Mounting the external radiator
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Correctly position the external radiator.

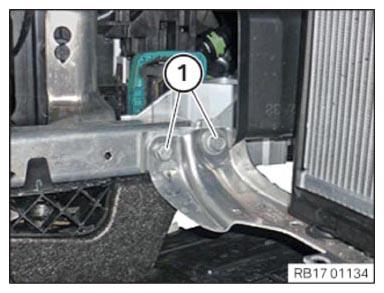

- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION

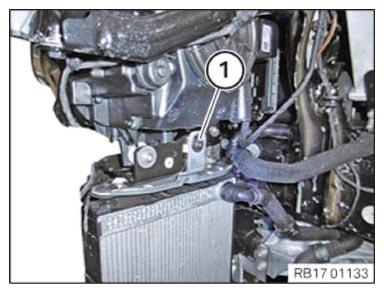

Holder for the external radiator on front axle support screw Tightening torque 19 Nm - Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Holder for the external radiator on support for lock | ||
| screw | Tightening torque | 11.8 Nm |
