51 34 191 Replacing left or right fixed door window in rear window frame

Cold processing:

Comply with instructions on gluing windows,

refer to 51 31... REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

Warm processing:

Open rear end of aluminum membrane in cartridge before installing in cartridge oven.

Heat glue cartridges to 80°C for one hour in oven (sourcing reference: BMW Parts Service).

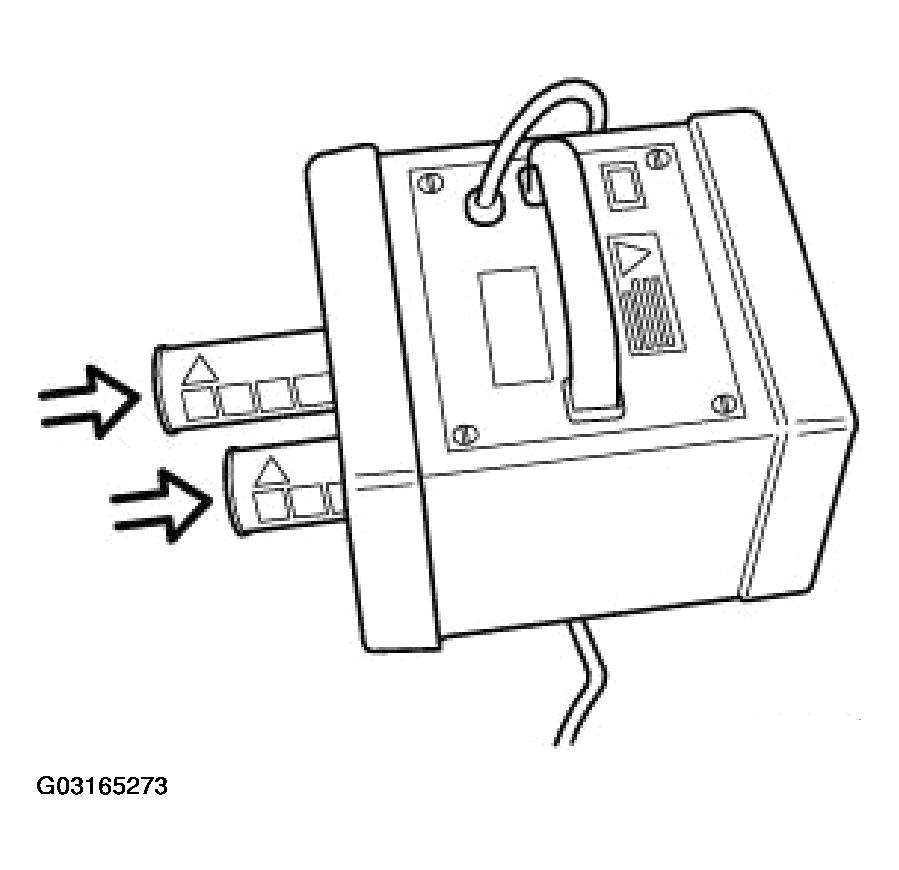

Fig 1: Heating Glue Cartridges

Courtesy of BMW OF NORTH AMERICA, INC.

Comply with instructions on gluing windows,

refer to 51 31... REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

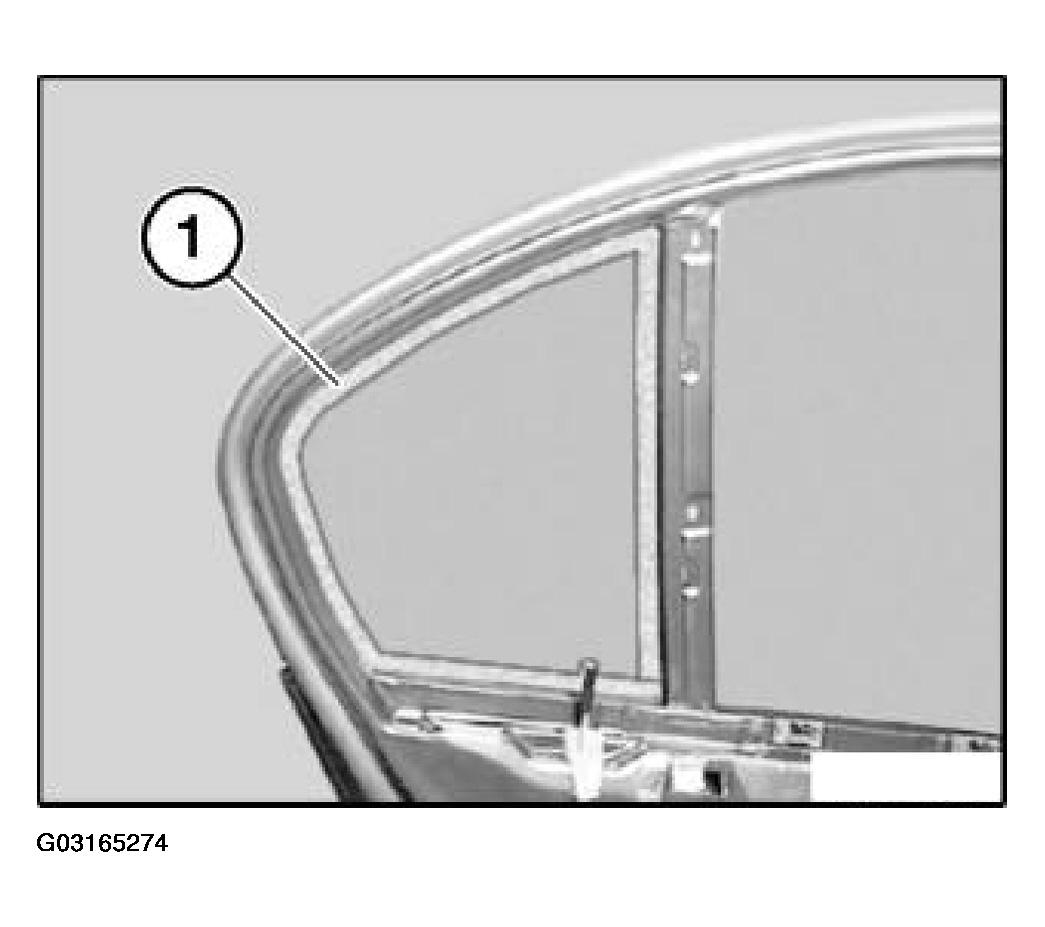

Mask door window and body flange all round with fabric adhesive tape (1) (e.g. Tesa).

Fig 2: Masking Door Window And Body Flange With Fabric Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Adhere to cutting depths as specified.

1. = 24 mm
2. = 18 mm
3. = 16 mm
4. = 20 mm

Carefully cut into corner points.

Fig 3: Identifying Corner Point Cut Specifications

Courtesy of BMW OF NORTH AMERICA, INC.

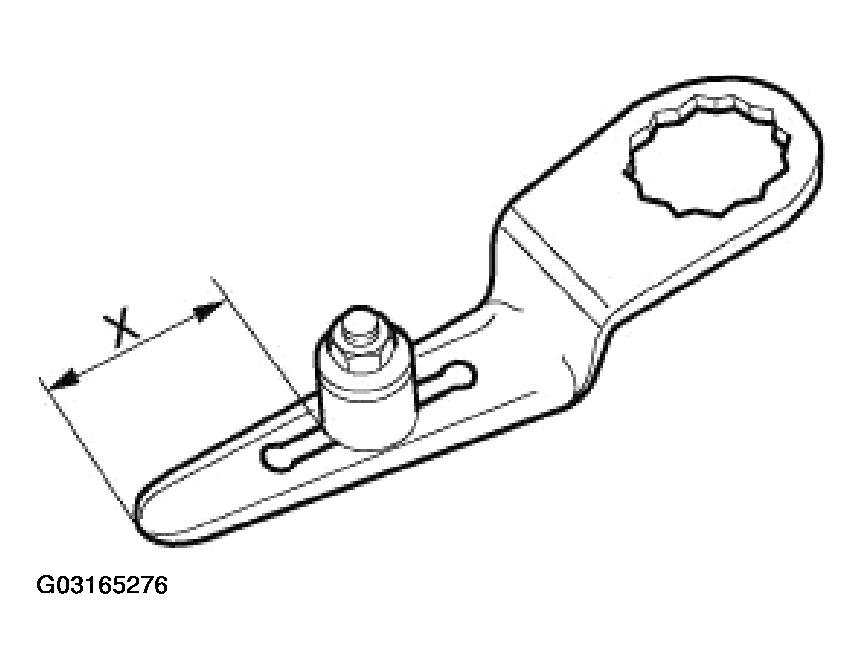

Fit straight blade with adjustable roller on tool and set dimension (X).

Adjust measurement (X), as specified in previous work step.

Fig 4: Identifying Adjustable Roller Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

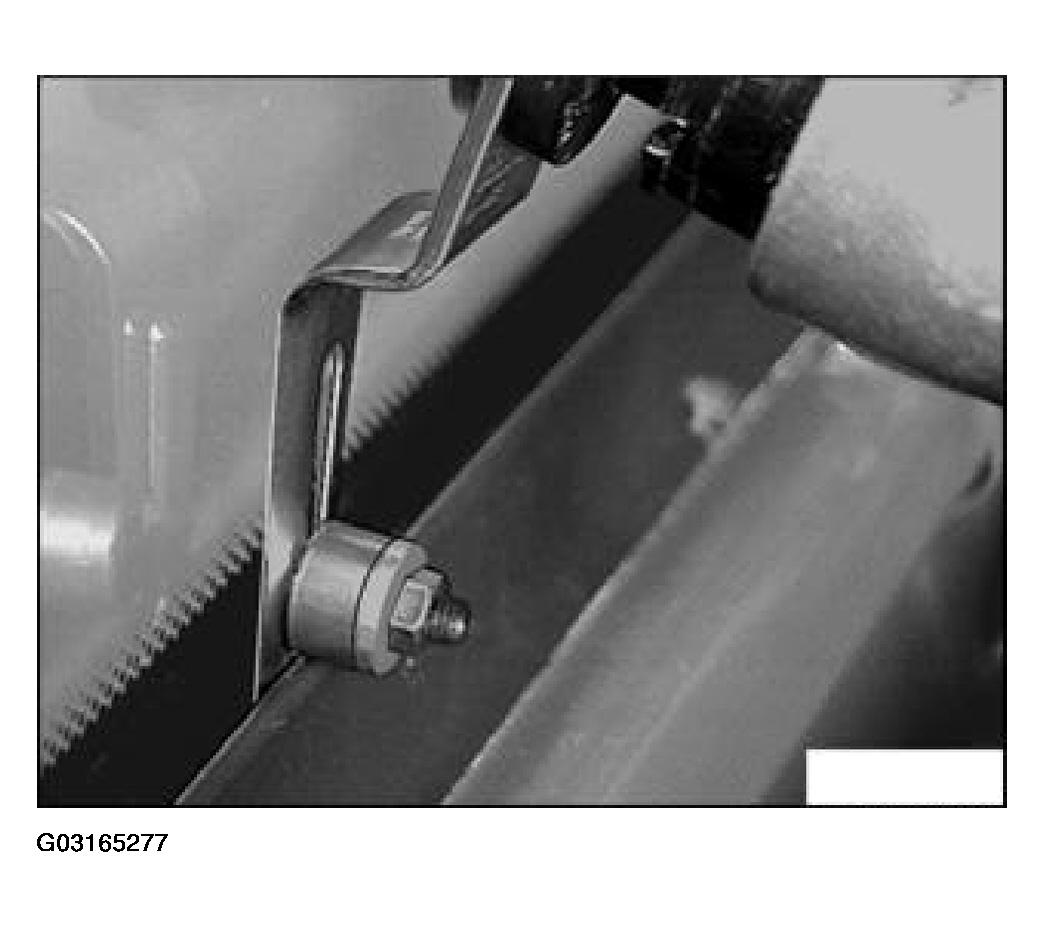

Carefully insert knife blade between body and door window.

Fig 5: Inserting Knife Blade Between Body And Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

Run handle of knife parallel to door window.

Pull door window outwards to remove.

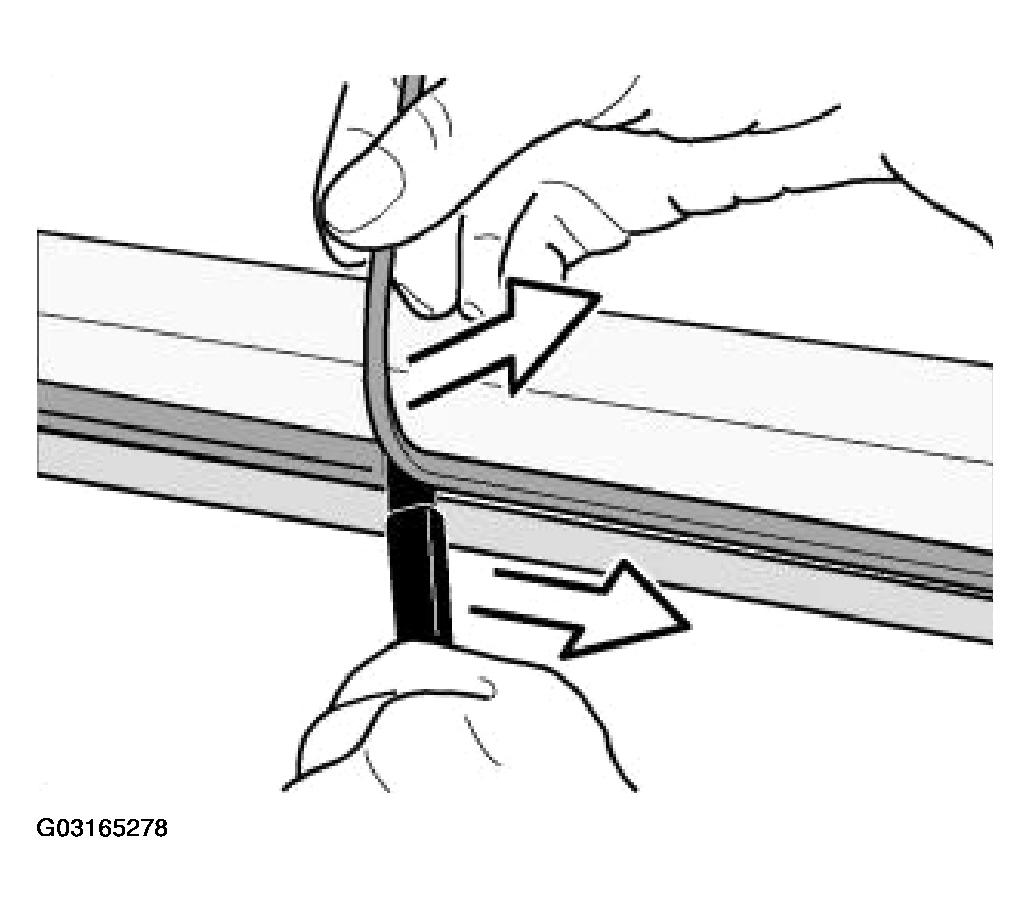

Cut off old glue in body opening to a thickness of approx. 0.5 mm.

Fig 6: Cutting Off Old Glue

Courtesy of BMW OF NORTH AMERICA, INC.

To avoid paintwork damage, carefully cut off glue residue with scalpel.

Remove glue tape all round. Clean body aperture with 2-propanol.

Treat body around glued area with BMW-approved materials (repair kit),

refer to 51 31... REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

Only when reusing the door window:

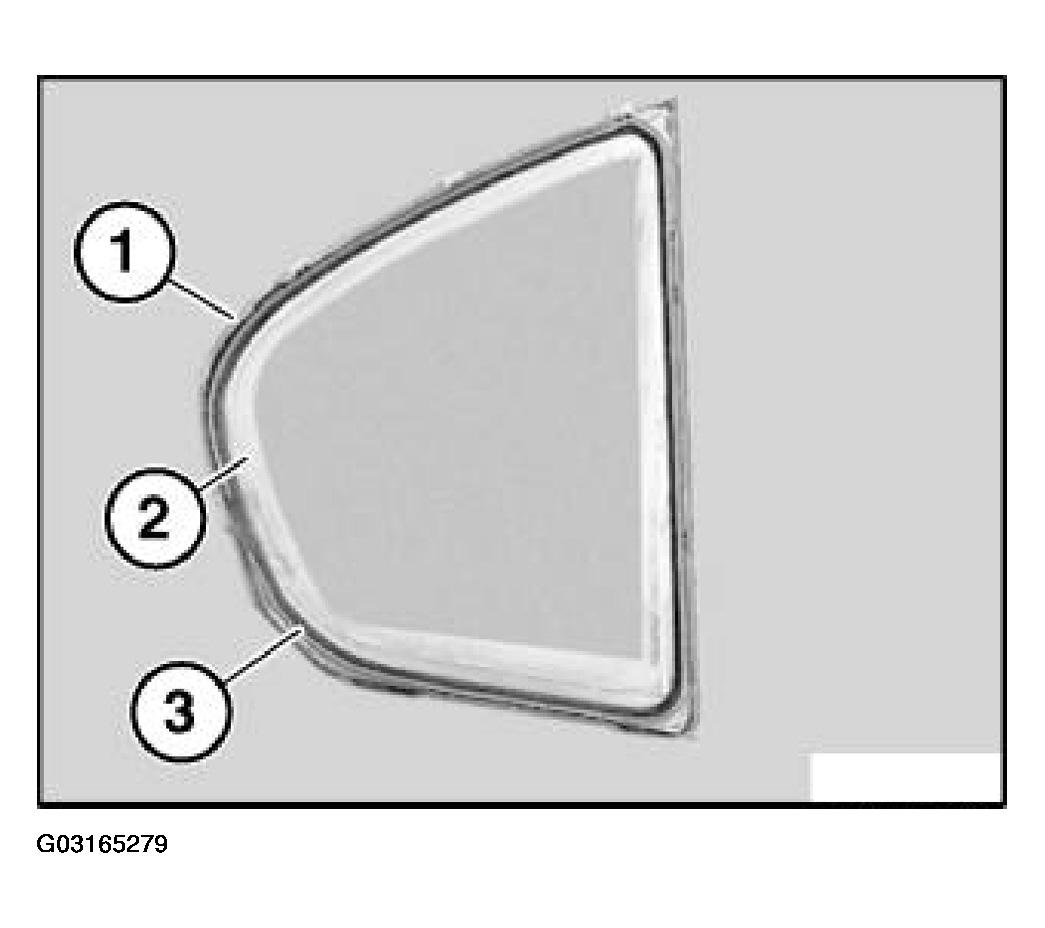

Remove frame (1).

Pull off fabric adhesive tape (2) all round and clean window with 2-Propanol.

Carefully remove glue residue (3) on door window with a scalpel to a thickness of approx. 0.5 mm.

Fig 7: Removing Glue Residue On Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

Treat door window around glued area (1) with materials approved by BMW (repair kit),

refer to 51 31... REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

Fig 8: Treating Door Window Around Glued Area

Courtesy of BMW OF NORTH AMERICA, INC.

Fit new frame (3).

Cut standard nozzle to size.

1. 7 mm
2. 12⁺¹ mm

Fig 9: Identifying Nozzle Cut Size

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, produce a sample bead before gluing.

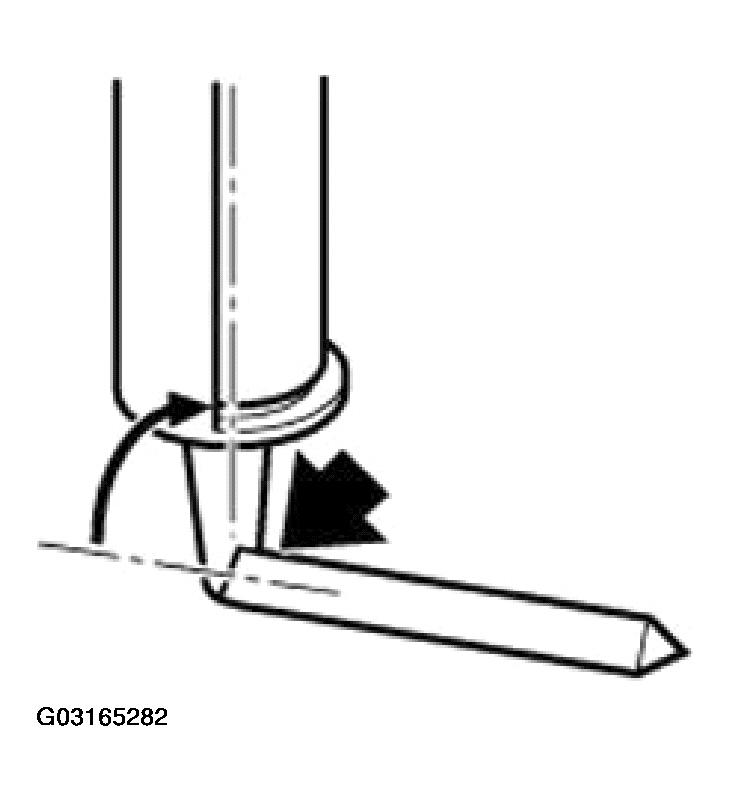

Cartridge must be perpendicular to door window.

Fig 10: Ensuring Cartridge Is Perpendicular

Courtesy of BMW OF NORTH AMERICA, INC.

Shape of glue bead:

1. 7 mm
2. 12⁺¹ mm

Fig 11: Identifying Shape Of Glue Bead

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully fit door window first at bottom with frame in guides (1), align sides and then install at top and press into position.

Fig 12: Fitting Door Window First At Bottom With Frame In Guides

Courtesy of BMW OF NORTH AMERICA, INC.

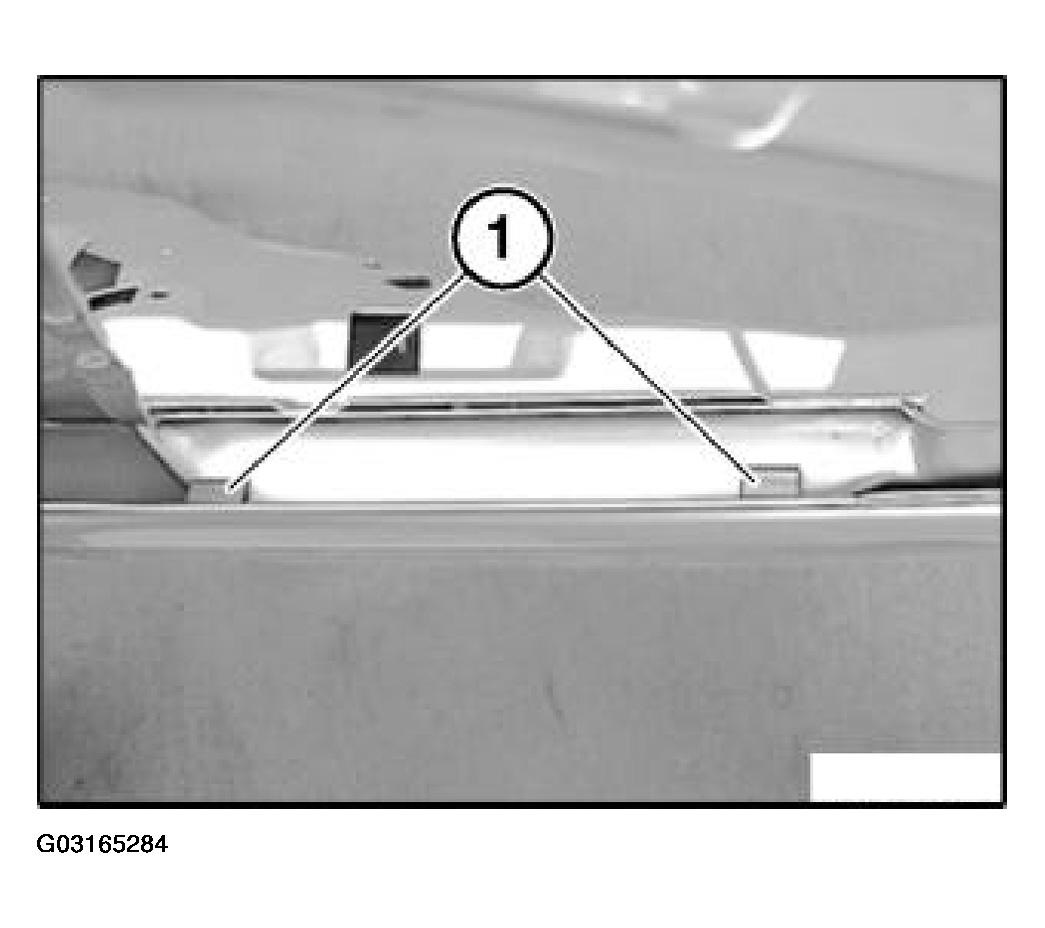

Door window is clipped with frame into openings (1) in rear door (2).

Fig 13: Clipping Door Window With Frame Into Openings In Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble car.
