51 34 211 Replacing rubber guide for rear left or right door window

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover (anti-trapping protection) on inside door window frame,

refer to 51 34 160 REMOVING AND INSTALLING/REPLACING COVER (TRAPPING PROTECTION) ON DOOR WINDOW FRAME (REAR DOOR), INSIDE LEFT OR RIGHT .

Remove rubber guide (1).

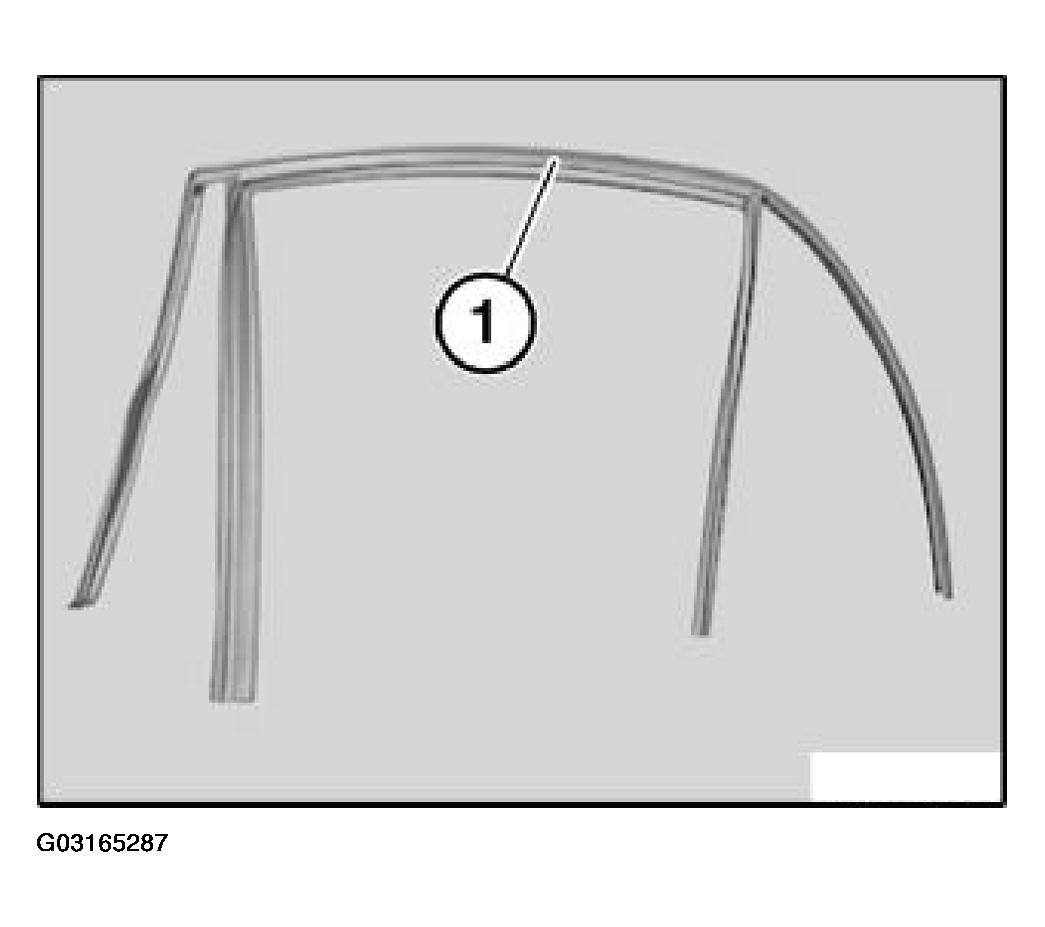

Fig 1: Removing Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Prior to installation, coat rubber guide (1) with soapy solution (washing-up liquid).

Fig 2: Installing Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Close door window glass (1) a little.
Push rubber guide (2) onto door window glass (1) and into window guide (3).

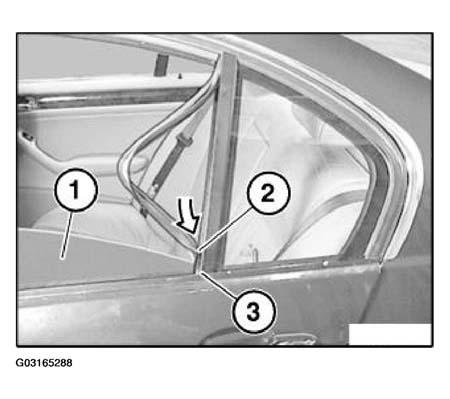

Fig 3: Installing Rubber Guide Onto Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
