51 34... Removing and installing/replacing trim on window frame of rear door (rear), left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cover on door window frame (rear door).

Remove rubber guide (1) from trim (2).

Fig 1: Removing Rubber Guide From Trim

G03165257

Courtesy of BMW OF NORTH AMERICA, INC.

Grip trim firmly and release screws (1).

Fig 2: Removing Trim Screws

G03165258

Courtesy of BMW OF NORTH AMERICA, INC.

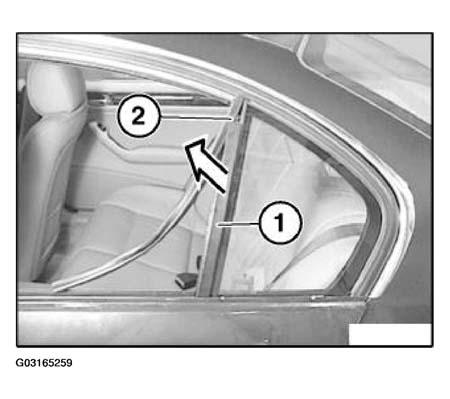

Push trim (1) downwards from rubber guide (2) and remove towards top.

Fig 3: Removing Trim From Rubber Guide

G03165259

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Threads (1) of trim (2) must not be damaged.

Fig 4: Checking Threads Of Trim

G03165260

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Foam section (1) must be fitted.

Fig 5: Installing Foam Section

G03165261

Courtesy of BMW OF NORTH AMERICA, INC.
