67 16 010 Removing And Installing/Replacing Left Headlight Vertical Aim Adjuster (Halogen Headlight)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

CAUTION: Do not touch headlight reflectors with your bare hands.

Remove lens/reflector for left headlight. Refer to 63 12 034 REMOVING AND INSTALLING/REPLACING LENS COVER FOR LEFT HEADLIGHT (HALOGEN HEADLIGHT) .

All models except US:

Remove sidelamp bulb holder from headlight.

Disconnect plug connections for low and high beams.

Turn retaining rings and remove both bulb holders.

Fig 1: Removing Both Bulb Holders

Courtesy of BMW OF NORTH AMERICA, INC.

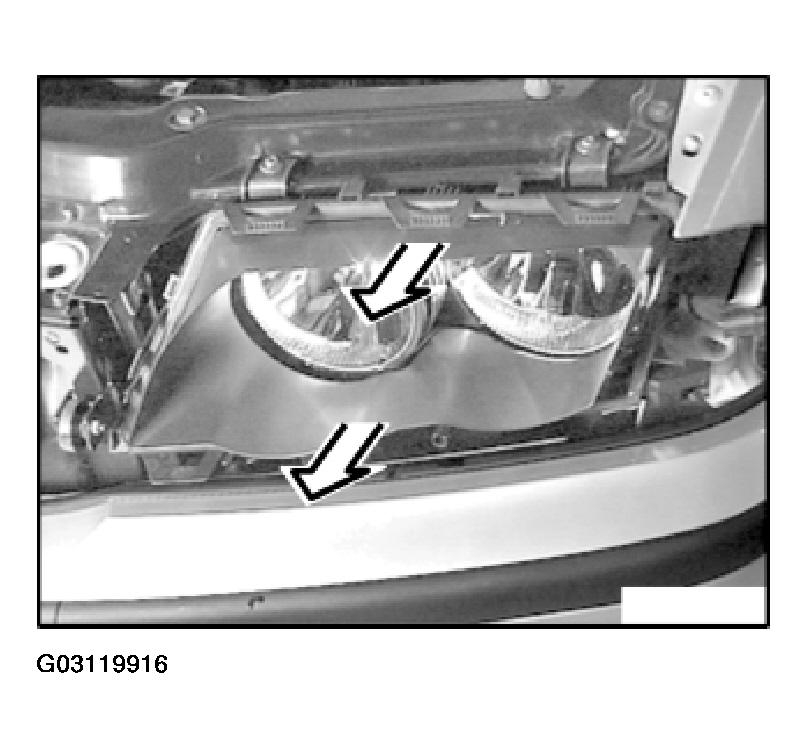

Remove cover frame towards front from headlight.

Fig 2: Removing Cover Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, illustration shows removed headlight.

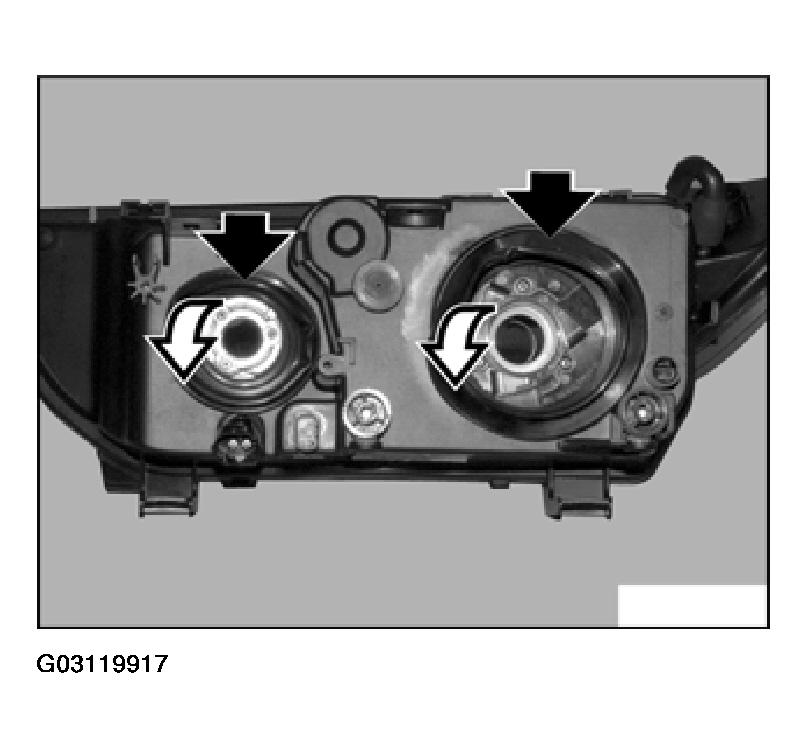

Detach covers for low and high beams.

Fig 3: Detaching Covers For Low And High Beams

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure covers are correctly seated.

Saloon/sedan, touring from 09/2001 only:

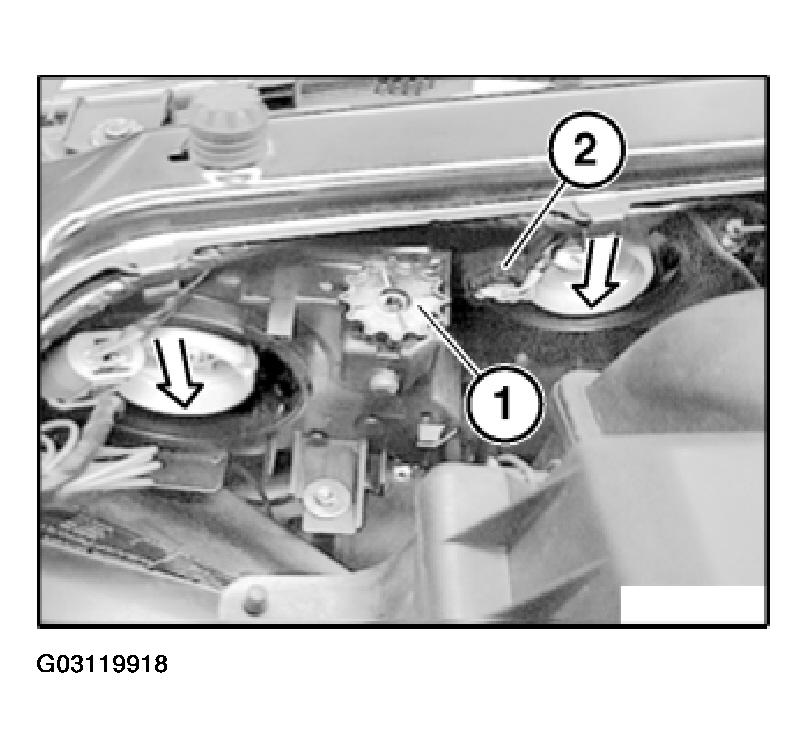

Disconnect plug connection (2).

Fig 4: Turning Thumbwheel

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Press headlight insert at an angle towards front/bottom until inner headlight vertical aim adjuster snaps audibly out of its guide.

Turn thumbwheel (1) clockwise until internal adjusting element is free (headlight insert can then be tilted out towards front!).

Installation:

Make sure adjusting element is correctly seated in guide.

Turn thumbwheel (1) approx. 10 turns counterclockwise.

Make sure headlight insert at bottom is correctly seated on ball socket of internal headlight vertical aim adjuster.

Saloon/sedan, touring from 09/2001 only:

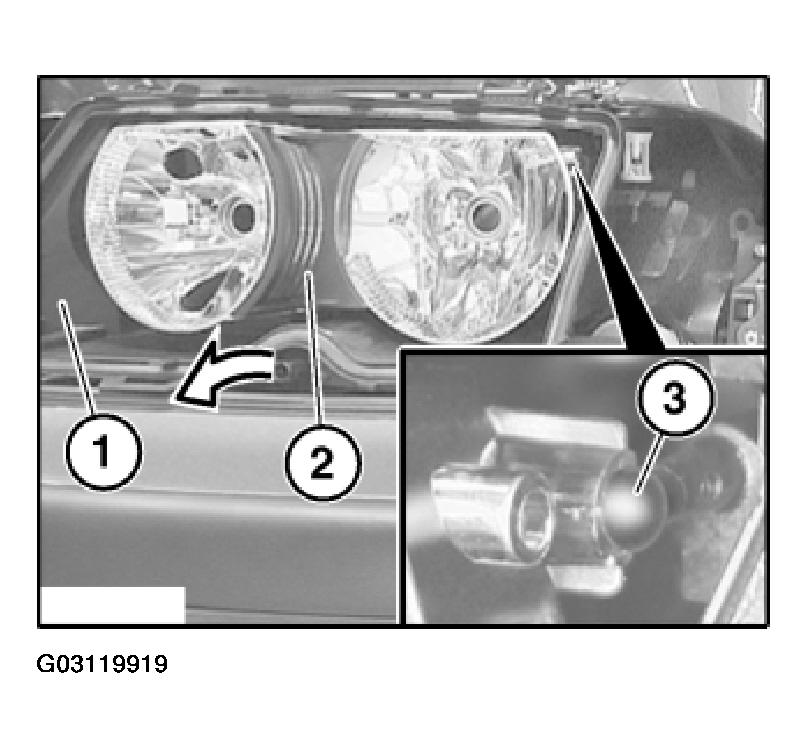

Tilt headlight insert (2) in direction of arrow out of headlight housing (1) and feed out of ball socket (3).

Fig 5: Removing Headlight Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure headlight insert (2) is correctly seated on ball socket (3) of headlight housing (1).

All others:

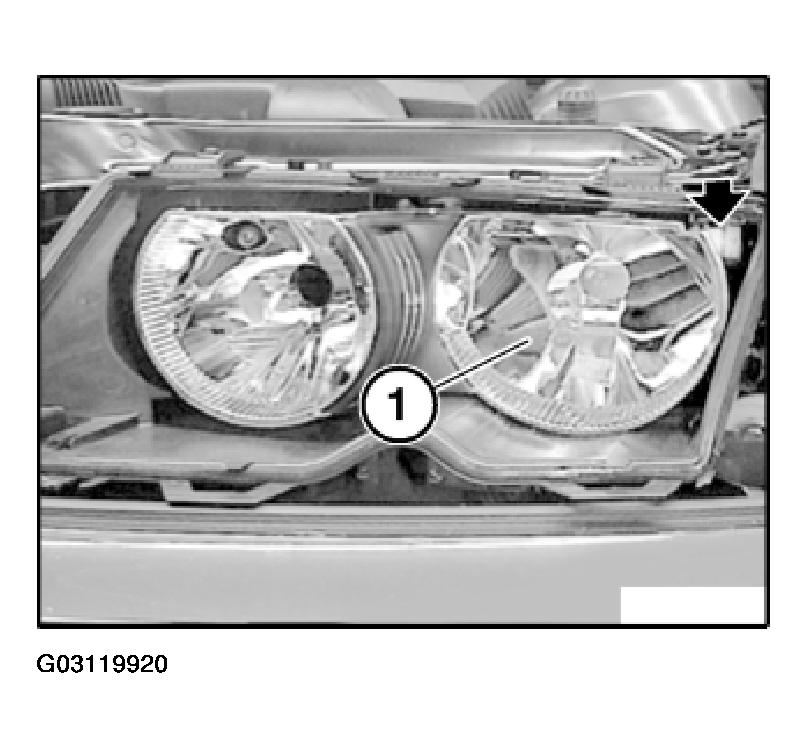

Feed headlight insert (1) out of guide and remove towards front.

Fig 6: Identifying Headlight Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure headlight insert (1) is correctly seated in guide.

NOTE: For purposes of clarity, illustration shows removed headlight.

Installation:

Insert guide (1) on headlight insert into rail (2).

Fig 7: Inserting Guide On Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Saloon/sedan, touring from 09/2001 only:

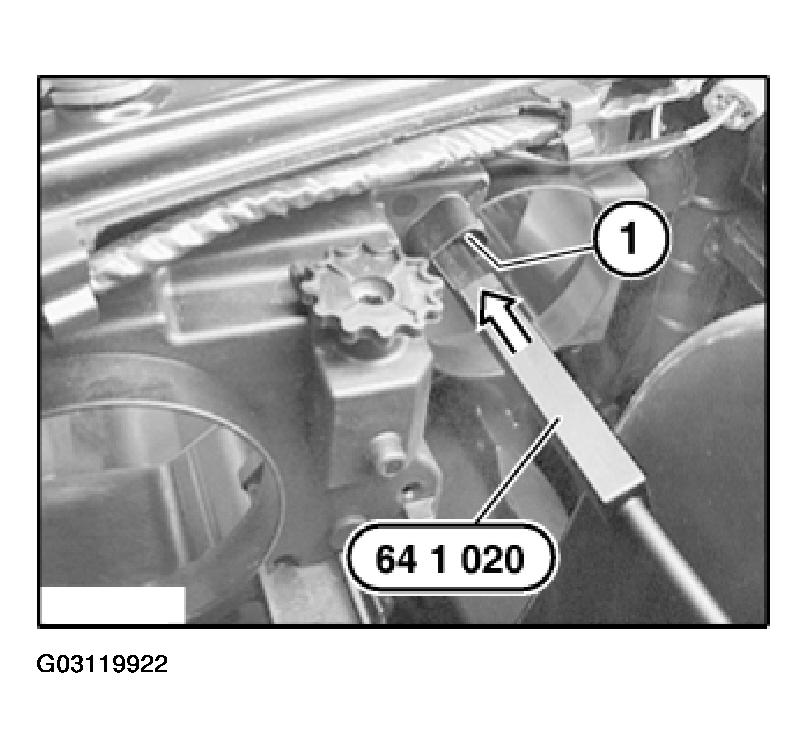

Unclip inner plug (1) with special tool 64 1 020 in direction of arrow.

Fig 8: Unclipping Inner Plug With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

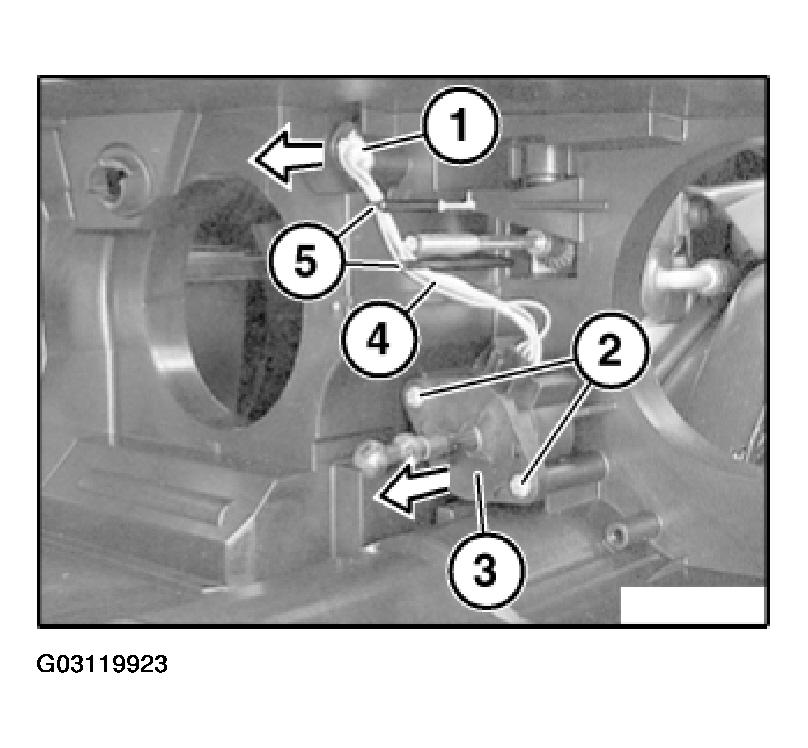

Pull out plug (1) in direction of arrow.

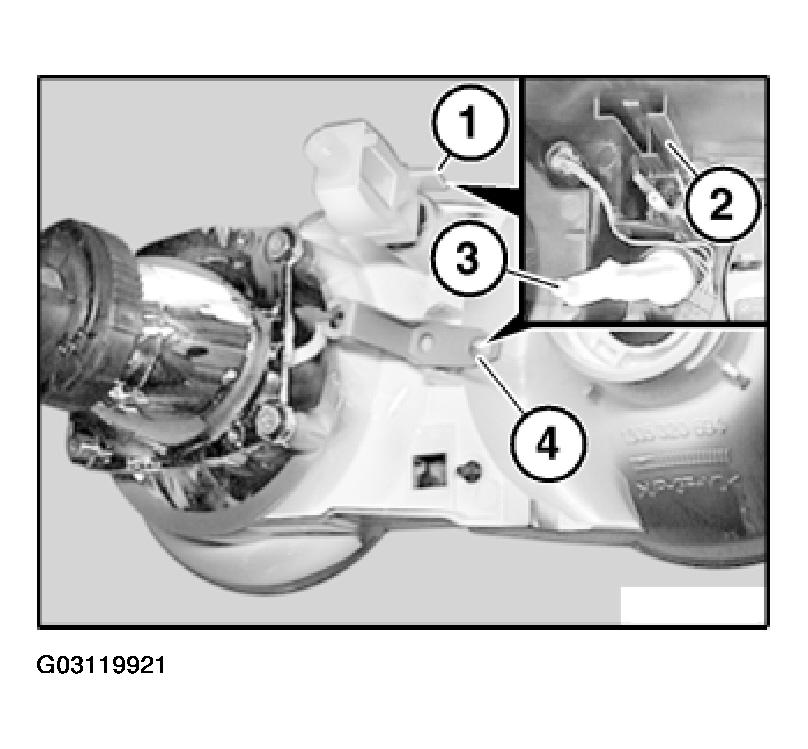

Fig 9: Removing Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove headlight vertical aim adjuster (3) in direction of arrow.

Installation:

Make sure cable (4) is correctly seated in guides (5).

All others:

NOTE: For purposes of clarity, illustration shows removed headlight.

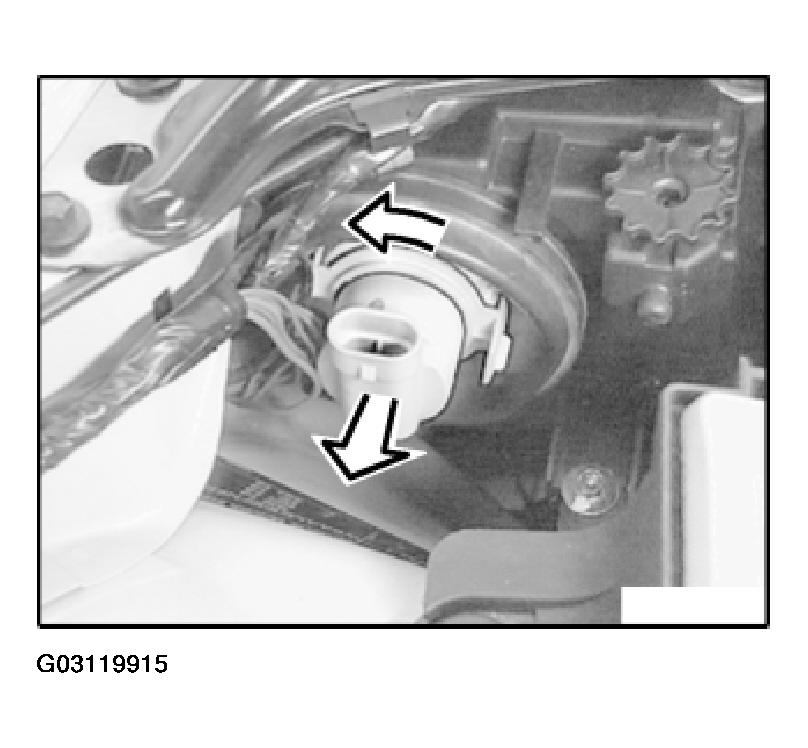

Disconnect plug.

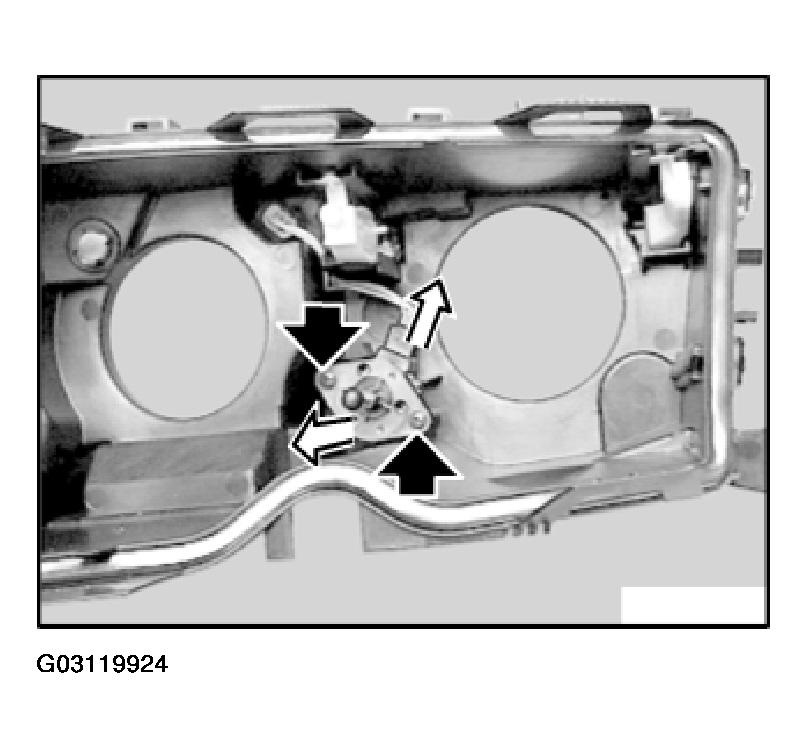

Fig 10: Disconnecting Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove headlight vertical aim adjuster.

All:

Installation:

Adjust headlights. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
