63 12 034 Removing And Installing/Replacing Lens Cover For Left Headlight (Halogen Headlight)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove turn signal lamp. Refer to 63 13 150 REMOVING AND INSTALLING/REPLACING COMPLETE FRONT LEFT OR RIGHT TURN SIGNAL LAMP .

Remove trim from headlight housing. Refer to 51 13 065 REMOVING AND INSTALLING/REPLACING TRIM ON LEFT OR RIGHT HEADLIGHT HOUSING (COUPE, CONVERTIBLE) .

Unclip cover strip from outside to inside.

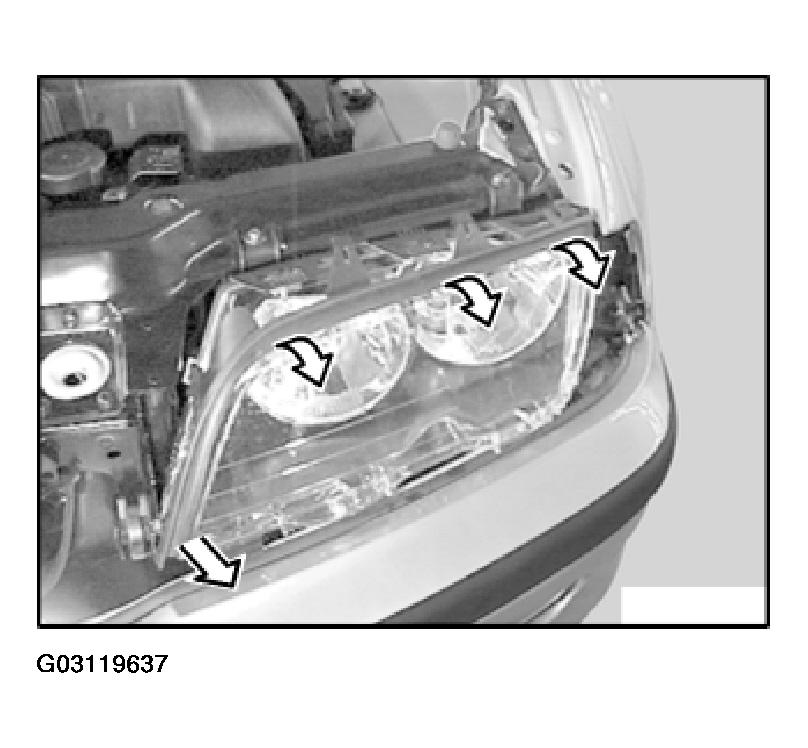

Fig 1: Removing Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip all retainers.

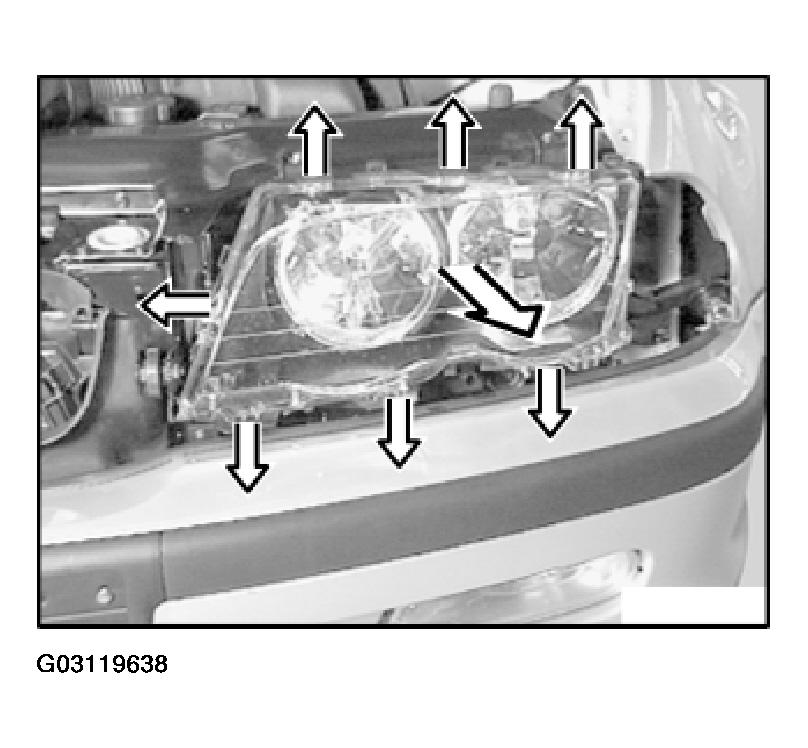

Fig 2: Removing Lens Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lens cover.

Installation:

If necessary, replace headlight seal.

Contact point of headlight seal is situated on radiator side (high beam headlight) in area of clip.
