63 10 004 Adjusting Headlights
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Observe test preconditions for headlight adjustment, refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

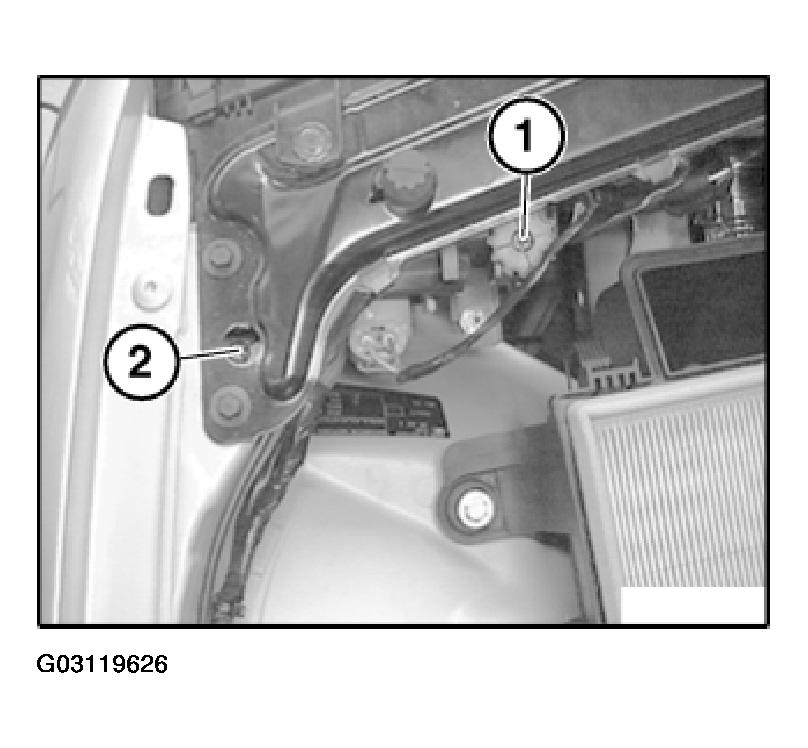

Adjust headlights by turning adjusting screws (1) and (2).
A definite allocation of adjusting screws is not possible. Both directions are always adjusted differently.
- Adjustment screw primarily for vertical adjustment
- Adjustment screw primarily for lateral adjustment
