36 10 715 Checking Rim For Face And Radial Runout

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

Check front or back wheel for face and radial runout. Refer to 36 10 209 CHECKING FRONT AND REAR WHEEL FOR FACE AND RADIAL RUNOUT .

Pull tire off rim.

Remove fitted balancing weights.

Remove dirt from rim well and rim flange.

Mount disc wheel in balancing machine.

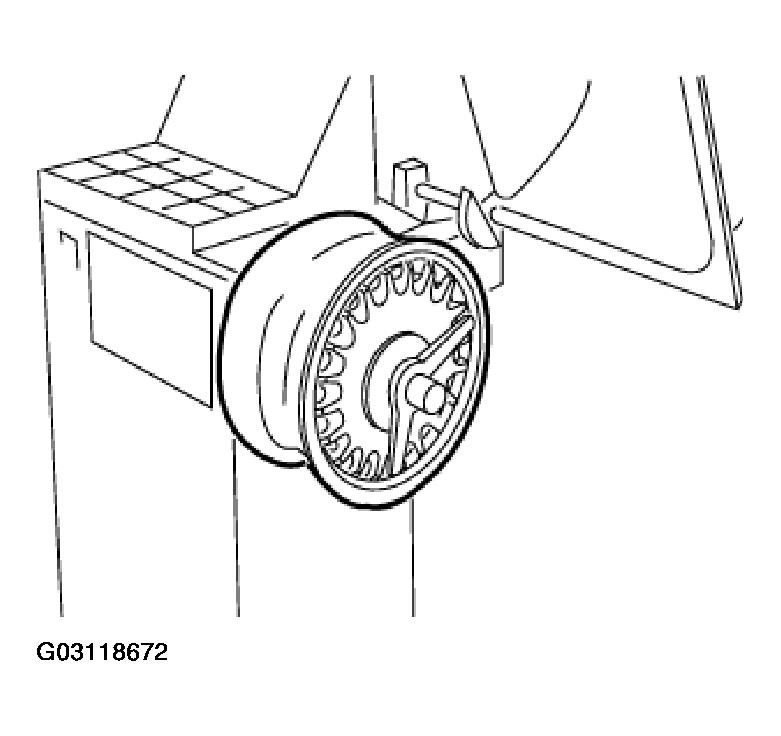

Fig 1: Mounting Disc Wheel In Balancing Machine

G03118672

Courtesy of BMW OF NORTH AMERICA, INC.

Use suitable wheel center supplied with corresponding balancing machine.

Basic flange.
Center.
Type flange.
Clamping nut.

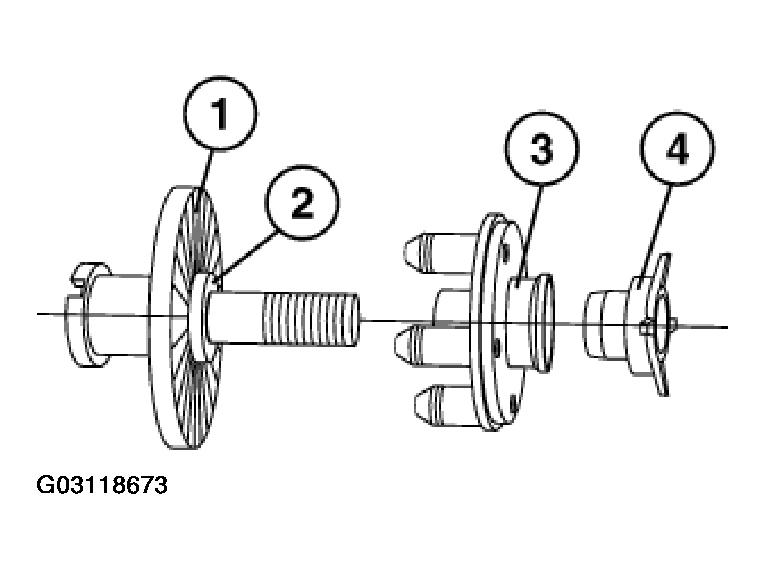

Fig 2: Identifying Components Of Wheel Balancing Machine

G03118673

Courtesy of BMW OF NORTH AMERICA, INC.

Place dial gauge sensor on rim shoulder.

Turn wheel by hand and measure maximum radial runout, refer to WHEEL AND TIRES - TECHNICAL DATA .

Carry out measurement on both rim shoulder sides.

NOTE: Dial gauge must be vertical to rim shoulder.

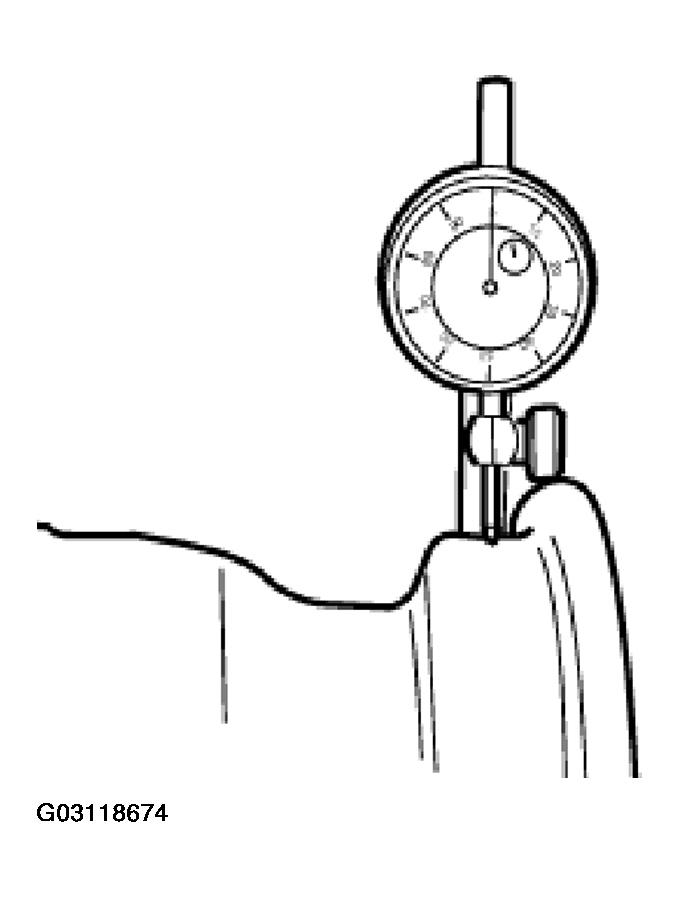

Fig 3: Placing Dial Gauge Sensor On Rim Shoulder

G03118674

Courtesy of BMW OF NORTH AMERICA, INC.

Position sensor on rim flange.

Turn wheel by hand and measure maximum lateral runout, refer to WHEEL AND TIRES - TECHNICAL DATA .

Carry out measurement on both rim flanges.

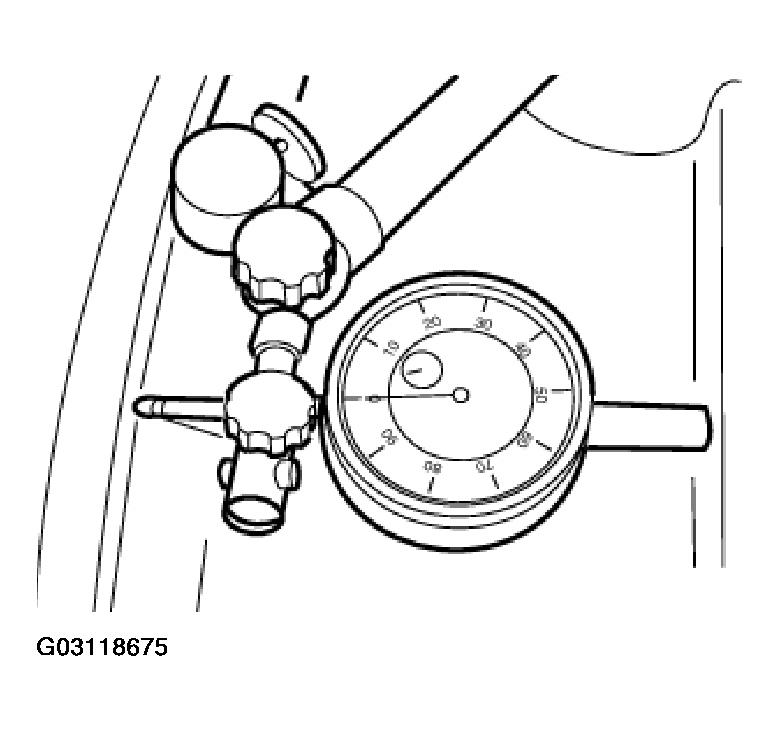

Fig 4: Measuring Maximum Lateral Runout

G03118675

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Dial gauge must be vertical to rim flange.

IMPORTANT: Avoid transformation errors during subsequent installation tasks. Refer to 36 10 508 STATIONARY WHEEL BALANCING .
