36 10 508 Stationary Wheel Balancing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see WHEEL & TIRES - SPECIAL TOOLS - 3-SERIES (E46/S64) .

Special Tools Required:

36 1 010
36 1 020

Necessary Preliminary Tasks:

Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .

IMPORTANT: Use only BMW-approved balance weights.

Remove old balance weights, stones in treads and larger pieces of dirt.

Check pressure and condition of tires, check for damage and flat spots (caused by long standing time of car on tires which have been run hot) and, if necessary, check wheel and tire for radial and lateral runout, refer to CHECKING FRONT AND REAR WHEEL FOR FACE AND RADIAL RUNOUT .

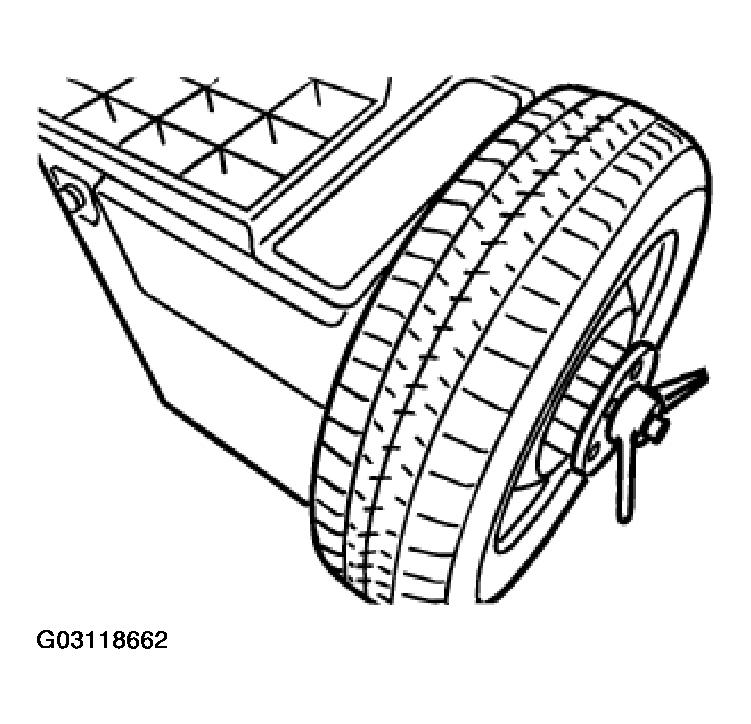

Fig 1: Mounting Wheel In Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

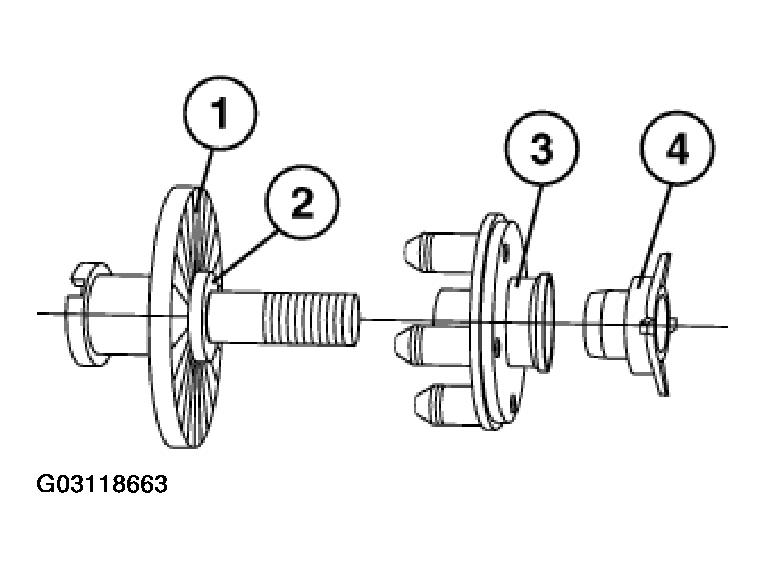

Use BMW-approved centering elements of relevant balancing machine manufacturers.

Basic flange.
Center.
Type flange.
Clamping nut.

Fig 2: Identifying Components Of Wheel Balancing Machine

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To avoid retooling errors, it is essential to fit the wheel on the balancing machine (e.g. valve pointing downwards) in the same way as it is subsequently fitted on the vehicle. Balance wheel in accordance with operating instructions of relevant balancing machine.

On light-alloy rims with distinctive J-shape rim flange, proceed as follows:

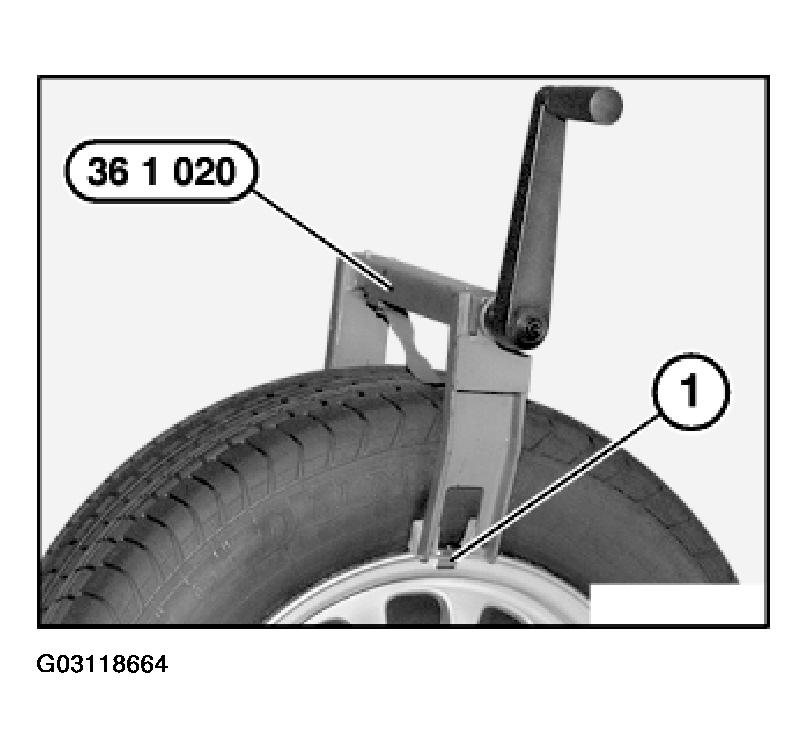

Gently force off tire sidewall with special tool 36 1 020 at appropriate point from rim flange.
Install retaining clip (1).
Remove special tool 36 1 020.

Fig 3: Identifying Retaining Clip
Courtesy of BMW OF NORTH AMERICA, INC.

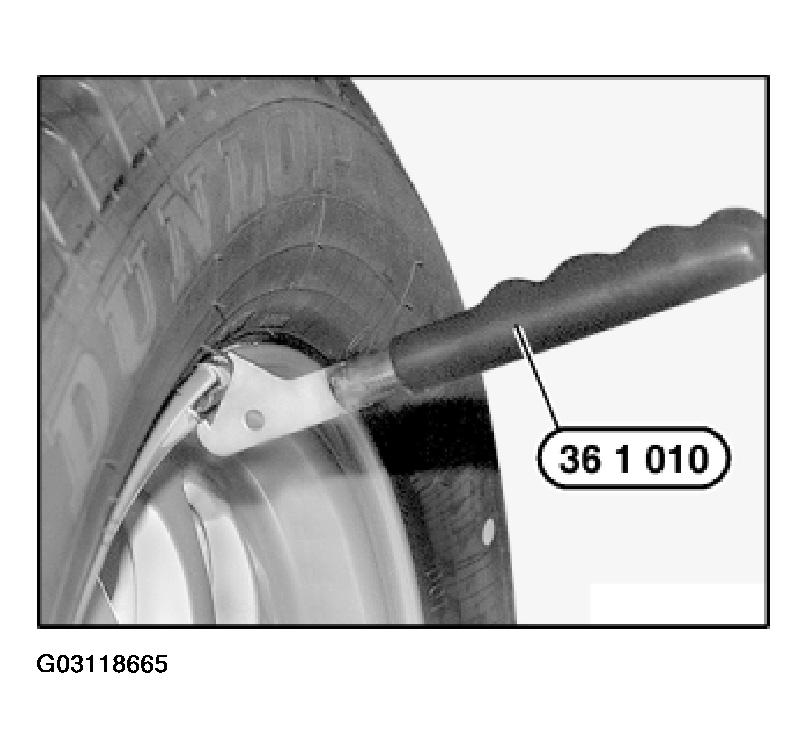

Raise retaining clip with special tool 36 1 010. Slide balance weight underneath and allow it to snap into place.

Fig 4: Raising Retaining Clip With Special Tool 36 1 010

Courtesy of BMW OF NORTH AMERICA, INC.

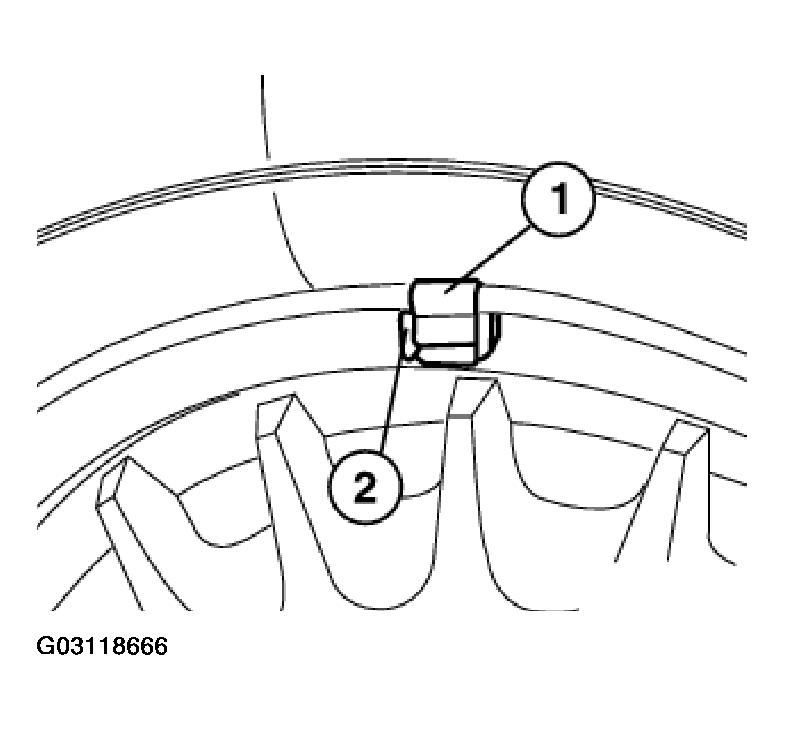

Arrangement of balance weights for light-alloy rims with distinctive J-shape rim flanges.

Spring retainer.
Balance weight.

Adhesive weights must be used on all other light-alloy rims. Max. out-of-balance per wheel. Refer to WHEEL AND TIRES - TECHNICAL DATA .

Fig 5: Identifying Balance Weight And Spring Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When using adhesive weights, proceed as follows:

Carefully remove old adhesive weights. Do not damage rim when doing so.
Select suitable location for fitting.
Clean adhesive area thoroughly.
