36 10 209 Checking Front And Rear Wheel For Face And Radial Runout

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see WHEEL & TIRES - SPECIAL TOOLS - 3-SERIES (E46/S64) .

Special Tools Required:

36 1 030

IMPORTANT: Wheel bearing must be OK!

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

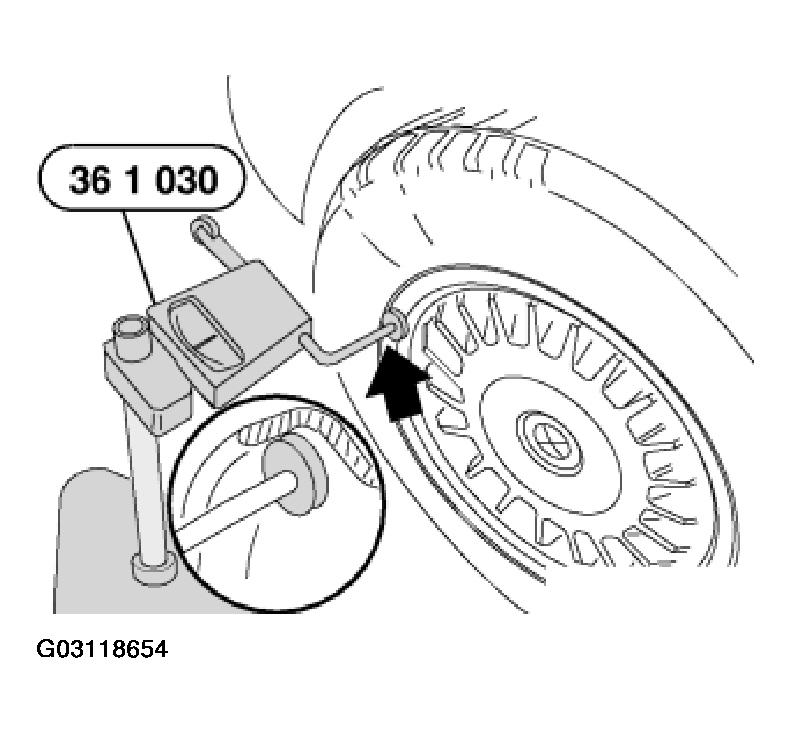

Fig 1: Checking Lateral Runout On Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout. Refer to WHEEL AND TIRES - TECHNICAL DATA .

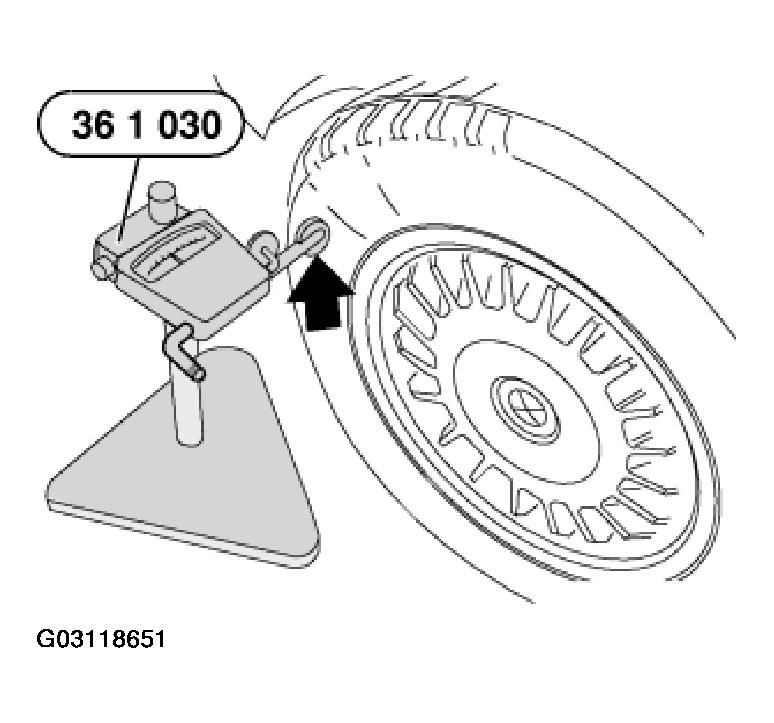

Fig 2: Checking Radial Runout On Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA .

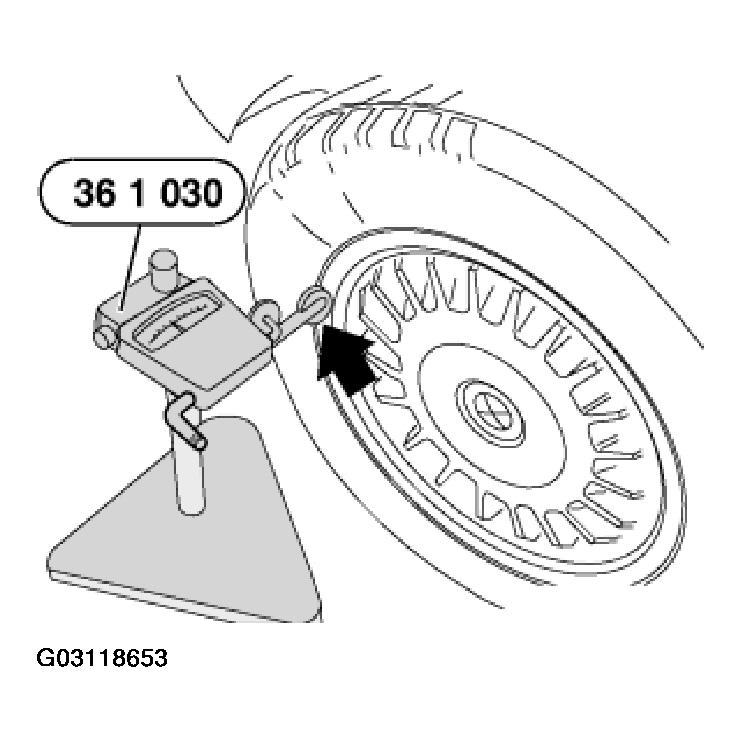

Fig 3: Checking Lateral Runout Of Rim

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture). Refer to WHEEL AND TIRES - TECHNICAL DATA .

Fig 4: Checking Radial Runout Of Rim

Courtesy of BMW OF NORTH AMERICA, INC.
