Removing the vibration damper
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
Preliminary work
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING THE FRONT HOOD SEAL .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING UPPER CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE FAN COWL .
- Refer to REMOVING THE DRIVE BELT FOR ALTERNATOR .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to IF INSTALLED: REMOVING THE UNDERBODY PROTECTION OF THE STEERING SYSTEM .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING STARTER MOTOR .

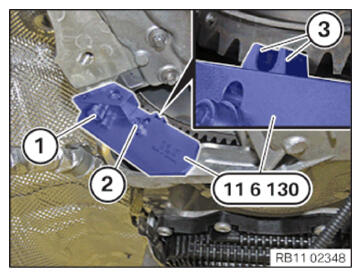

- Position special tool 0 496 595 (11 6 130) and fasten with screw (1) .
- Slide the counter support on the screw (2) toward the flywheel and turn the engine by the vibration damper until the gearing (3) engages the flywheel.
- Tighten the bolt (2)
.

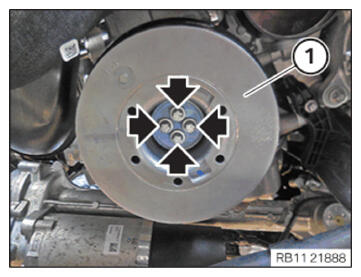

- Remove screws (arrows).
- Guide the vibration damper (1) upward and remove it.
