Installing the vibration damper
NOTE:
RISK OF DAMAGE
Radial shaft seal damage .
When fitting the vibration damper, the radial shaft seal may be damaged .
Radial shaft seal damage .
When fitting the vibration damper, the radial shaft seal may be damaged .
- It is imperative to use the special tool when fitting the vibration damper.
NOTE:
TECHNICAL INFORMATION
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.
When removing/refitting or replacing the vibration damper, the radial shaft seal must also be replaced.

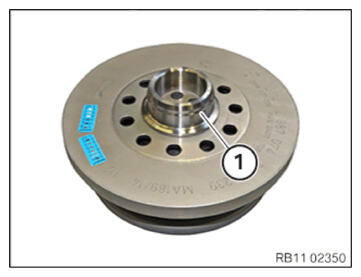

- Clean the sealing surface (1) from oil and contamination.

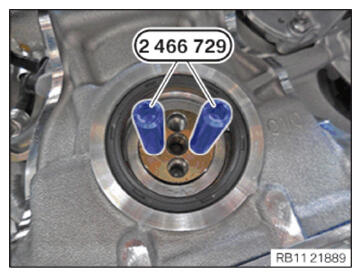

- Screw in the special tool 2 466 729
and hand-tighten it on the crankshaft.

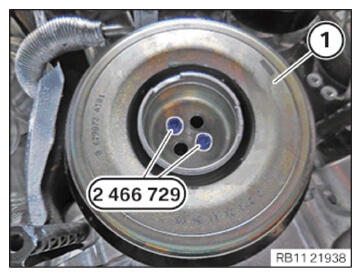

- Insert and install the vibration damper (1) on the special tool 2 466 729
.
- Replace the screws (1).
Parts: Screws

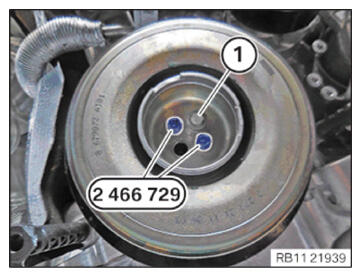

- Hand-tighten the bolt (1).
- Guide the special tool 2 466 729 out and remove.
- Version A (without mild hybrid technology):
Replace all remaining screws (1).
Position vibration damper (1).

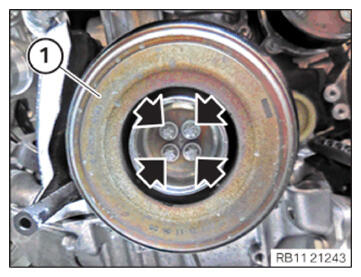

Tighten the bolts (arrows) on the vibration damper (1).
TIGHTENING TORQUE SPECIFICATION
| Vibration damper with belt pulley to crankshaft | ||
| M10x65 Replace screws. Tighten screws crosswise. |
1. Joining torque | 40 Nm |
| 2. Angle of rotation | 60° | |
| 3. Angle of rotation | 60° | |
- Version B (with mild hybrid technology):
Replace all remaining screws (1).
Parts: Screws
Position vibration damper (1).

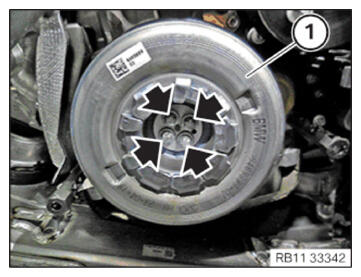

Tighten the bolts (arrows) on the vibration damper (1).
TIGHTENING TORQUE SPECIFICATION
| Vibration damper with belt pulley to crankshaft | ||
| M10x65 Replace screws. Tighten screws crosswise. |
1. Joining torque | 40 Nm |
| 2. Angle of rotation | 60° | |
| 3. Angle of rotation | 60° | |
- Loosen screw (2).

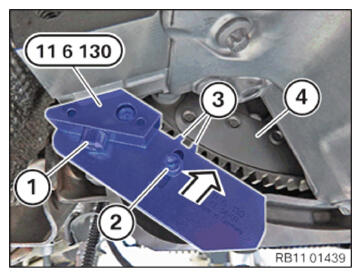

- Slide the counter support with the bolt (2) down until the teeth (3) are no longer engaged in the gearing of the flywheel (4).
- Release the screw (1) and feed out and remove special tool 0 496 595 (11 6 130) .
Follow-up work
- Refer to INSTALLING STARTER MOTOR .
- Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to ATTACHING THE ELECTRIC AUXILIARY COOLANT PUMP FOR THE CHARGE AIR COOLER AND/OR AIR CONDITIONING CONDENSER .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
