Move the engine to the installation position

Preliminary work

Refer to DEACTIVATING ELECTRICAL SYSTEM .
Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING WINDSHIELD PANEL COVER .
Refer to REMOVING THE CENTER COWL UPPER PART .
Refer to REMOVING THE LATERAL HOOD SEALS .
Refer to REMOVING THE SIDE PANEL SEAL .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING ACOUSTIC COVER AT REAR .
Refer to REMOVING ALL IGNITION COILS .
Refer to REMOVING FUEL DELIVERY LINE .
Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .

Prepared engine bridge

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Components connected to the engine joint or cross member .
Injury hazard!

Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
Attach the component to correctly mounted engine joints or cross members only.
Only lift component, do not move it longitudinally or transversely.

Insert and position the special tool 2 459012 at the cylinder head.

Tighten the screws (1) of the special tool 2 459012 .

TIGHTENING TORQUE SPECIFICATION

Special tool to cylinder head
M8	Tightening torque	21.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully position engine bridge (1) with help from a support person.

Courtesy of BMW OF NORTH AMERICA, INC.

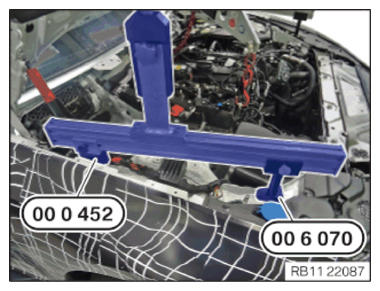

Make sure the left special tool 0 496 685 (00 6 070) is resting correctly on the front end.

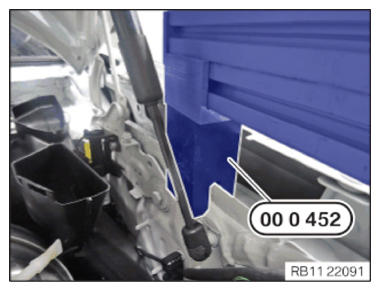

Make sure the left special tool 0 495 850 (00 0 452) is resting correctly on the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.

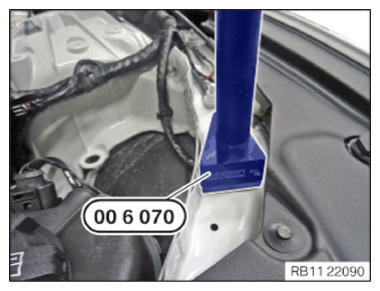

Make sure the right special tool 0 496 685 (00 6 070) is resting correctly on the front end.

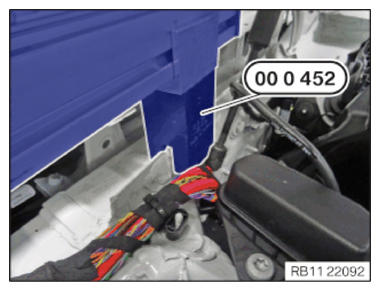

Make sure the right special tool 0 495 850 (00 0 452) is resting correctly on the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.

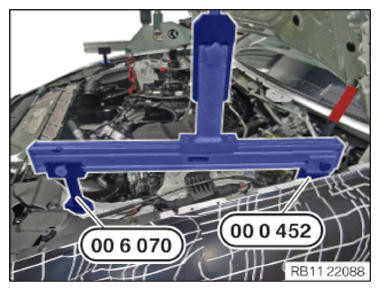

By shifting the engine bridge on the profile strips of the special tool 0 496 430 (00 6 050), align it above the engine mounting bracket and screw in place.
Connect the special tool 0 490 579 (11 0 070) to the special tool 2 459 012 .
Connect the special tool 0 490 579 (11 0 070) above the engine mounting bracket (1) at rear.

Courtesy of BMW OF NORTH AMERICA, INC.

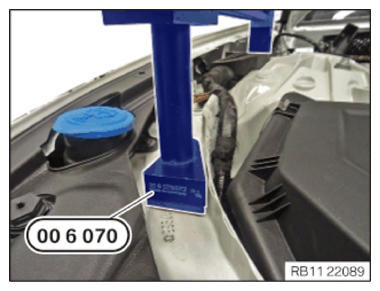

Check that the right special tool 0 496 685 (00 6 070) is resting correctly on the front end.

Courtesy of BMW OF NORTH AMERICA, INC.
Check that the right special tool 0 495 850 (00 0 452) is resting correctly on the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.
Check that the left special tool 0 496 685 (00 6 070) is resting correctly on the front end.

Courtesy of BMW OF NORTH AMERICA, INC.
Check that the left special tool 0 495 850 (00 0 452) is resting correctly on the carrier support.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) of the right engine mount from the top with a standard tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Lav out all special tools and standard tools.

Number	Description
1	Standard torque wrench
2	Extension 11 9 150
3	External Torx socket E14

Courtesy of BMW OF NORTH AMERICA, INC.

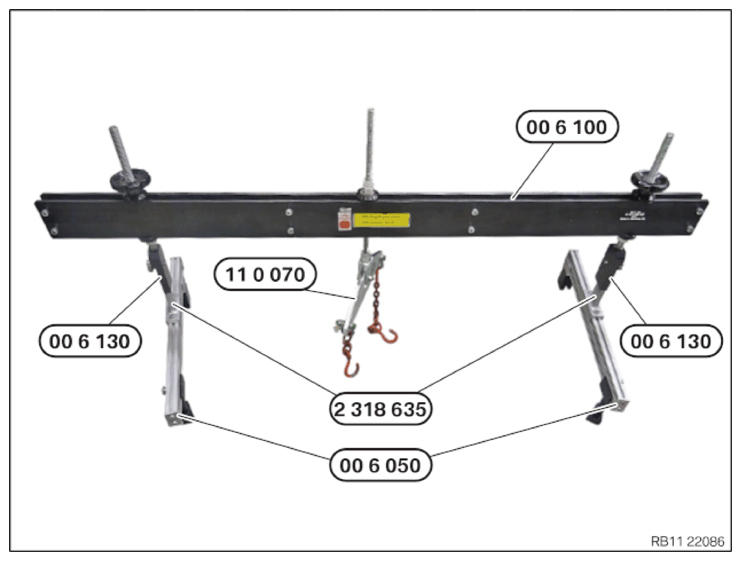

Assemble all special tools and standard tools as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screw (1) of the left engine mount from the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.
Raise the engine by turning the special tool 2 361 506 (00 6 103) (spindle) 10 mm .
