Installing coolant pumps

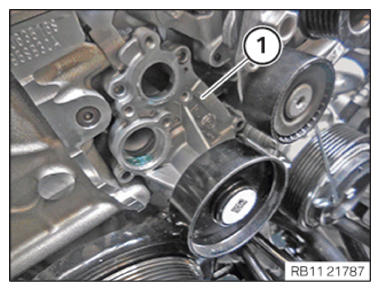

• Feed in and install the coolant pump (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

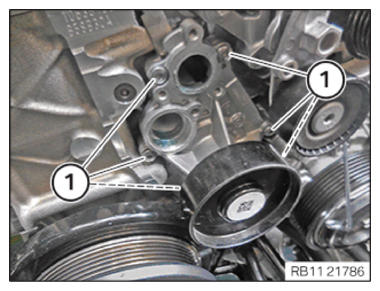

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Coolant pump to component carrier
  M6x20	tightening torque	10.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

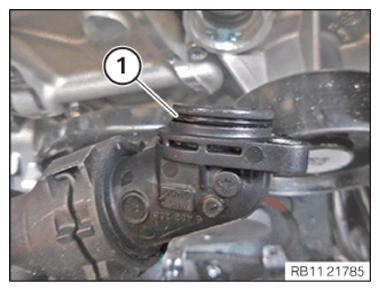

• Replace sealing ring (1).

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

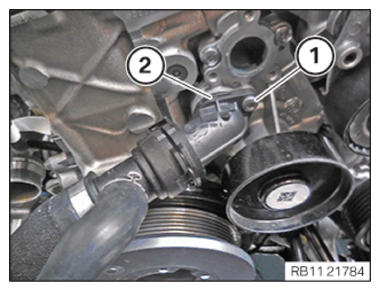

• Feed in and install coolant line (2).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Coolant line of coolant radiator to coolant pump
  M6x20	tightening torque	10.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
• Refer to INSTALLING THE COOLANT LINE BETWEEN THE CYLINDER HEAD AND THE COOLANT PUMP .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING CLEAN AIR PIPE .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
