Removing the feed line for the transmission oil cooler

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

NOTE: TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.

Preliminary work

Refer to REMOVING THE FRONT HOOD SEAL .
Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
Refer to REMOVING UPPER CROSS CONNECTION .
Refer to REMOVING THE REAR TOP CROSS CONNECTION .
Refer to REMOVING INTAKE SILENCER HOUSING .
Refer to REMOVING CLEAN AIR PIPE .
Refer to REMOVING THE FAN COWL .
Refer to REMOVING THE FRONT LEFT WHEEL .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THRUST FIELD .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to RELEASING THE FRONT PROP SHAFT ON THE FRONT AXLE TRANSMISSION .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
Refer to DETACHING STEERING SHAFT AT BOTTOM FROM STEERING GEAR .
Refer to IF INSTALLED: REMOVING THE ENGINE OIL COOLER .
Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to REMOVING THE RADIATOR OF THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to PARTIALLY REMOVING THE RADIATOR OF HIGH-TEMPERATURE COOLANT CIRCUIT .

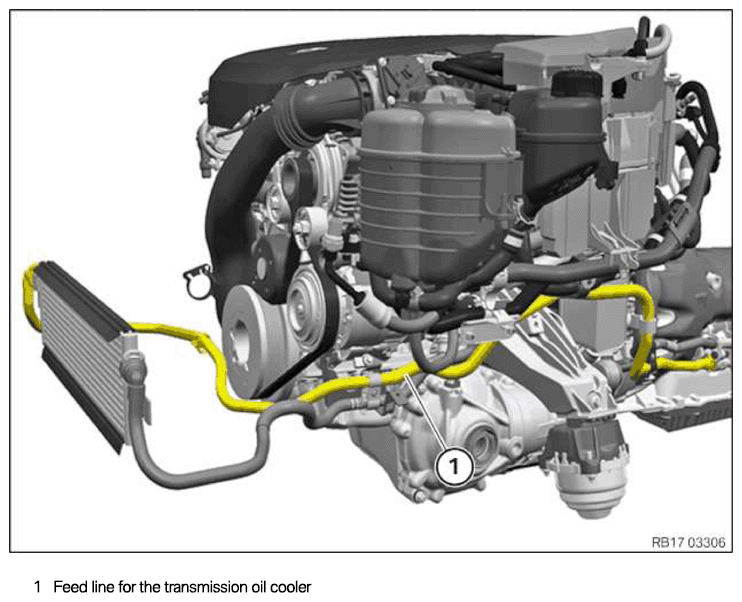

Feed line for the transmission oil cooler

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Unlock the stone chip guard (1) in the marked area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed out the stone chip guard (1) in arrow direction from the holders (2) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Press the radiator bracket (1) on the right carefully to the side and feed out the feed line (2) for the transmission oil cooler.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and open the holder (1).
Feed out coolant line (2) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Guide out and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed out the feed line (1) for the transmission oil cooler from the holder (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes.
Some parts may differ in certain details.
Loosen the nuts (1).
Feed out the retaining plate (2) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Open the rubber retainer (1).
Loosen screw (3).
Guide out and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed out the feed line (1) for the transmission oil cooler from the holder (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release the holder (1) carefully from the return line (2) for the transmission oil cooler in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Detach the feed line (1) for the transmission oil cooler with the holder (2) from the thermostat (3).
Catch and dispose of escaping transmission oil.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the holder (1) from the feed line (2) for the transmission oil cooler and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the feed line (1) out for the transmission oil cooler carefully with the help of a support person to the front and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
