If installed: Remove the engine oil cooler

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Work must be carried out carefully in order to avoid component damage.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

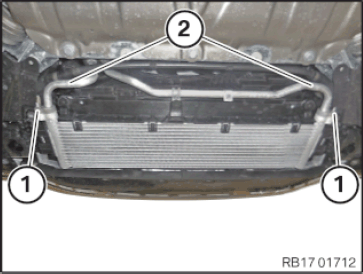

Loosen screws (1).
Loosen screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

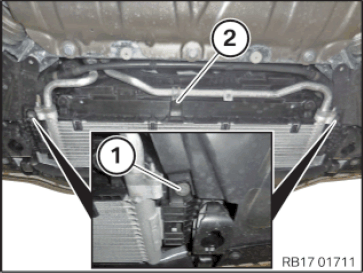

Drill out the rivet (1).
Remove the damper (2).

Courtesy of BMW OF NORTH AMERICA, INC.

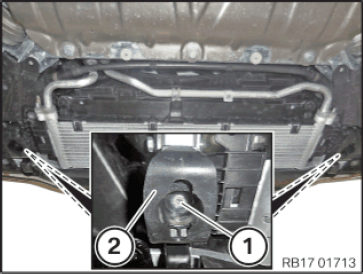

Loosen nuts (1).
Disconnect the lines (2).
Collect and dispose of emerging fluids.

Courtesy of BMW OF NORTH AMERICA, INC.

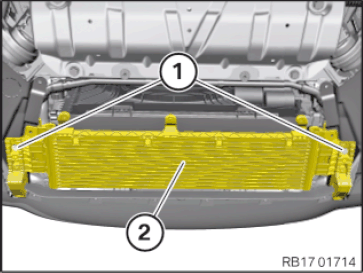

Loosen screws (1).
Feed out the engine oil cooler (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
