Installing the coolant line from the coolant radiator to the heat management module

• Check sealing ring (1)  of coolant line (2)  for damage and, if necessary, replace it.

  Courtesy of BMW OF NORTH AMERICA, INC.

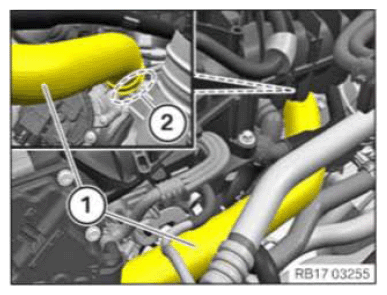

• Guide in the coolant line (1)  and install it.
• Connect and lock the coolant line (1)  in the marked area (2)  .

  The coolant line (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

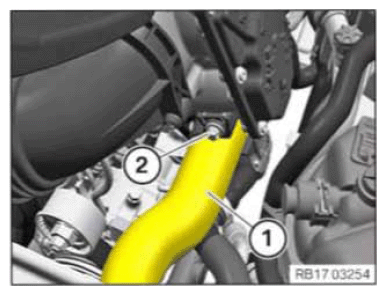

• Fasten the coolant line (1)  in the holder (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

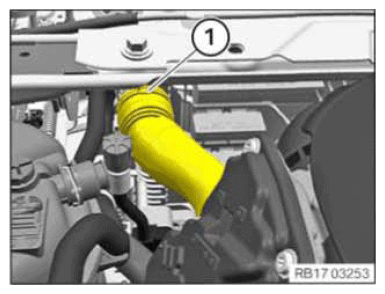

• Connect and lock coolant line (1)  .

  The coolant line (1)  must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CONTROL UNIT BRACKET .
• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
