Remove heat management module

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

NOTE: RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.

Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Preliminary work

Refer to DEACTIVATING ELECTRICAL SYSTEM .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING ACOUSTIC COVER AT REAR .
Refer to REMOVING THE DME CONTROL UNIT .
Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to REMOVING THE CONTROL UNIT HOLDER .
Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to REMOVING THE FRONT ACOUSTIC COVER FOR THE ENGINE .
Refer to REMOVING TANK VENT VALVE .
Refer to REMOVING THE OIL FILLER CAP .
Refer to REMOVING THE OIL FILTER ELEMENT .
Refer to RELEASING THE OIL DRAIN PLUG .
Refer to TIGHTENING THE OIL DRAIN PLUG .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to IF INSTALLED: REMOVING THE UNDERBODY PROTECTION OF THE STEERING SYSTEM .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to REMOVING THE INTAKE PLENUM .
Refer to REMOVING THE COMPLETE FULL-FLOW OIL FILTER .

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE: RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.

Do not pull on wires when disconnecting connectors and plug connections.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

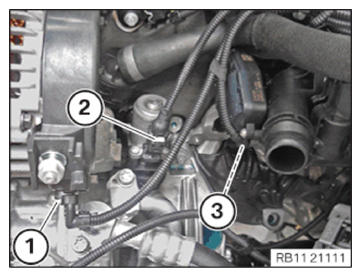

Unlock and disconnect plug connections (1) to (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

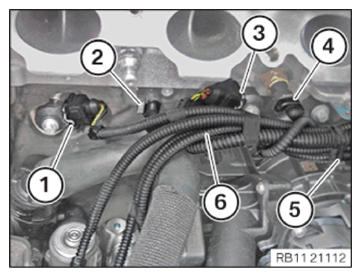

Unlock and disconnect plug connections (1) to (4) .
Loosen clamp (5) .
Feed out the wiring harness section (6) for sensor system 1 and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

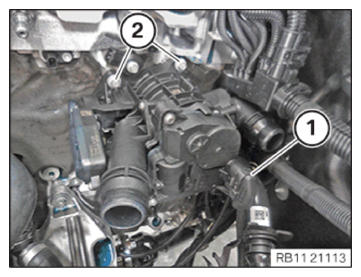

Unlock plug connection (1) and disconnect.
Loosen screws (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

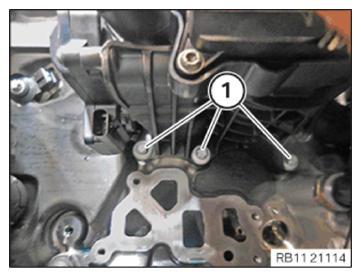

Loosen screws (1) .
Guide out the heat management module and remove.
Catch and dispose of leakage coolant.
